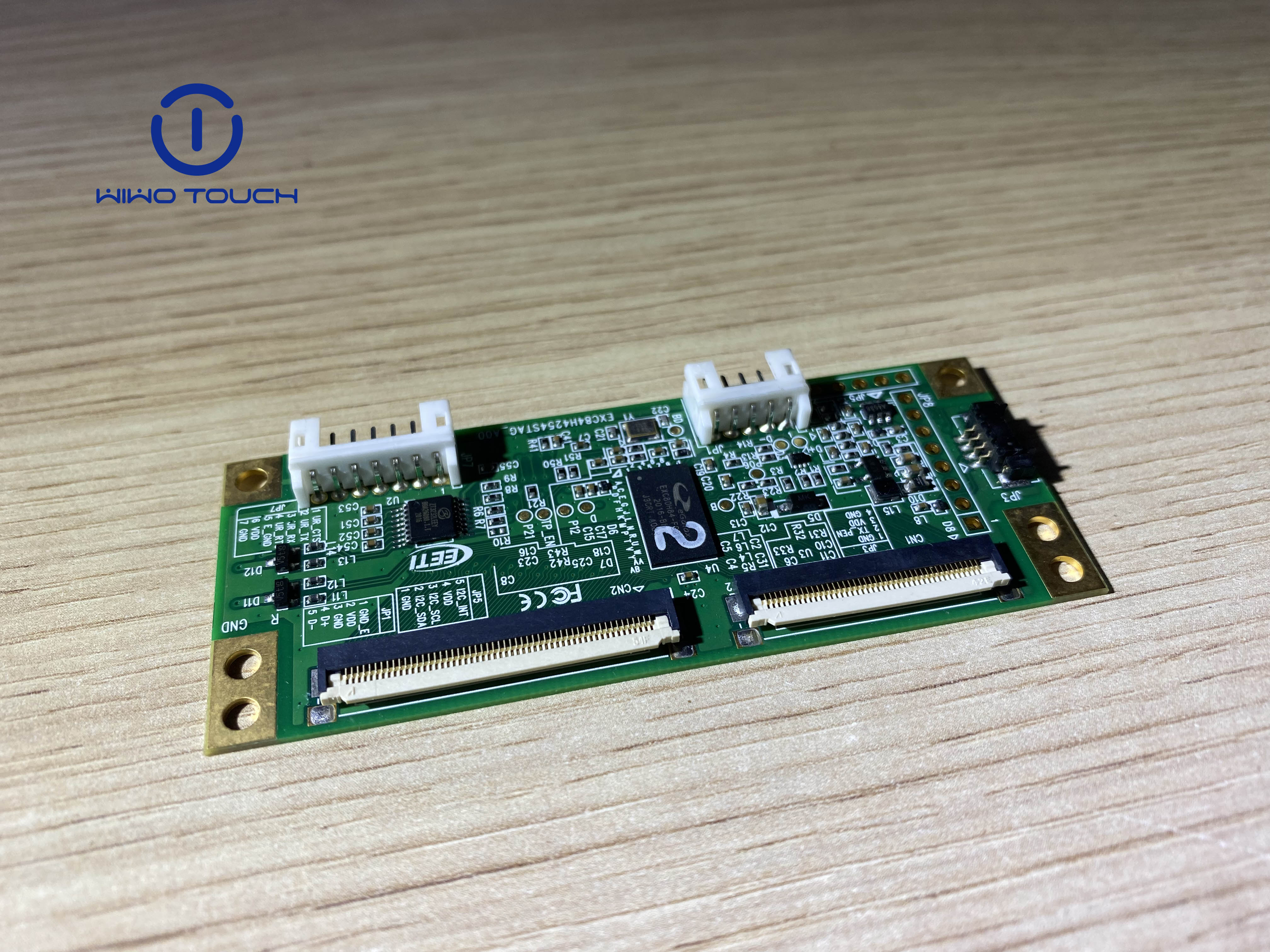

Wiwotouch Controller Board EETI EXC84 for Touch Screen

  • Wiwotouch Controller Board EETI EXC84 for Touch Screen
  • Wiwotouch Controller Board EETI EXC84 for Touch Screen
  • Wiwotouch Controller Board EETI EXC84 for Touch Screen
  • Wiwotouch Controller Board EETI EXC84 for Touch Screen
Wiwotouch Controller Board EETI EXC84 for Touch ScreenWiwotouch Controller Board EETI EXC84 for Touch ScreenWiwotouch Controller Board EETI EXC84 for Touch ScreenWiwotouch Controller Board EETI EXC84 for Touch Screen
  • Product attributes:
  • IC ：EETI EXC84
  • Interface：I2C / USB / RS232
  • OS：Windows、WinCE、Android、Linux
  • Response time Average < 25 ms
  • Product description:
  • The EXC84 is a projected capacitive (PCAP) touch screen controller that powered by EETI's high performance MCU EXC84. By integrating the advantages of self and mutual capacitance sensing technology, b
  •  Download

WIWOTOUCH Controller Board EETI EXC84 for Touch Screen


The EXC84 is a projected capacitive (PCAP) touch screen controller that powered by EETI's high performance MCU EXC84. By integrating the advantages of self and mutual capacitance sensing technology, built-in high driving voltage transceiver and a powerful MCU, this controller incorporate most desired features to boost the noise immunity, and support high demand applications in most categories.



Parameters


 1. 接口 / Interface I2C、USB、RS232 4. 线性 / Linearity

 Line drawing accuracy :

 1pt +/- 1mm offset /10mm

 Touch (point) accuracy : 1pt +/- 1mm

  2. 芯片 / IC EETI EXC84 5. 功耗 / Power Consumption

 Active Mode: < 200mA

 Idle Mode : < 100mA

  3. 通道数 / Channels of Panel

 Max. Tx:42 Rx:54 channels

 (include shielding pin)

 6. 支持点数 / Support  Points max 10 points
  7. 运行系统 / Oparating System Windows、WinCE、Android、Linux
  8. 输入电压 / Input Voltage 3.5V~5.5V.Typical 5V. 11. 运行温度 / Operating Temperature -40 to 85 ℃
  9. 反应时间 / Response Time Average < 25 ms 12. 储存温度 / Storage Temperature -40 to 90 ℃
  10. 读取速度 / Report Rate ＞100 Hz 13. 相对湿度 / Relative Humidity 95% at 60 ℃, RH Non-condensing
