Wiwotouch Controller Board ILI2511 for Touch Screen

  • Wiwotouch Controller Board ILI2511 for Touch Screen
  • Wiwotouch Controller Board ILI2511 for Touch Screen
  • Wiwotouch Controller Board ILI2511 for Touch Screen
Wiwotouch Controller Board ILI2511 for Touch ScreenWiwotouch Controller Board ILI2511 for Touch ScreenWiwotouch Controller Board ILI2511 for Touch Screen
  • Product attributes:
  • IC ：ILITEK 2511
  • Interface：I2C / USB
  • OS：WindowsXP, Windows7, Windows8, WinCE, Android, Linux
  • Response time＜10ms
  • Product description:
  • Wiwotouch Controller Board ILI2511 has a high adaptability to support a variety of operating systems on the market, high adaptability, low consumption, excellent response time and reading speed...
  •  Download

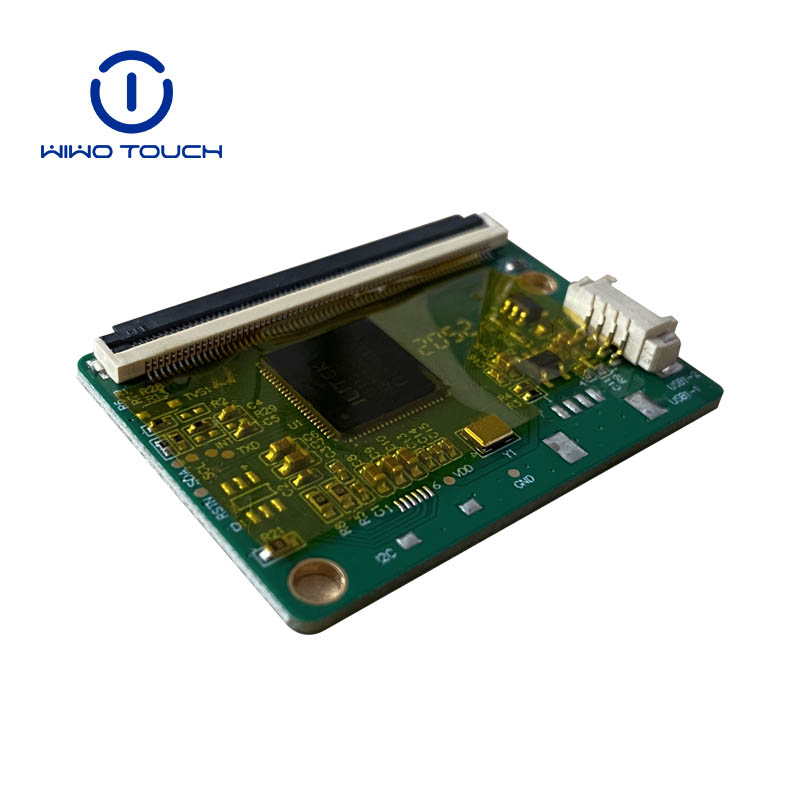

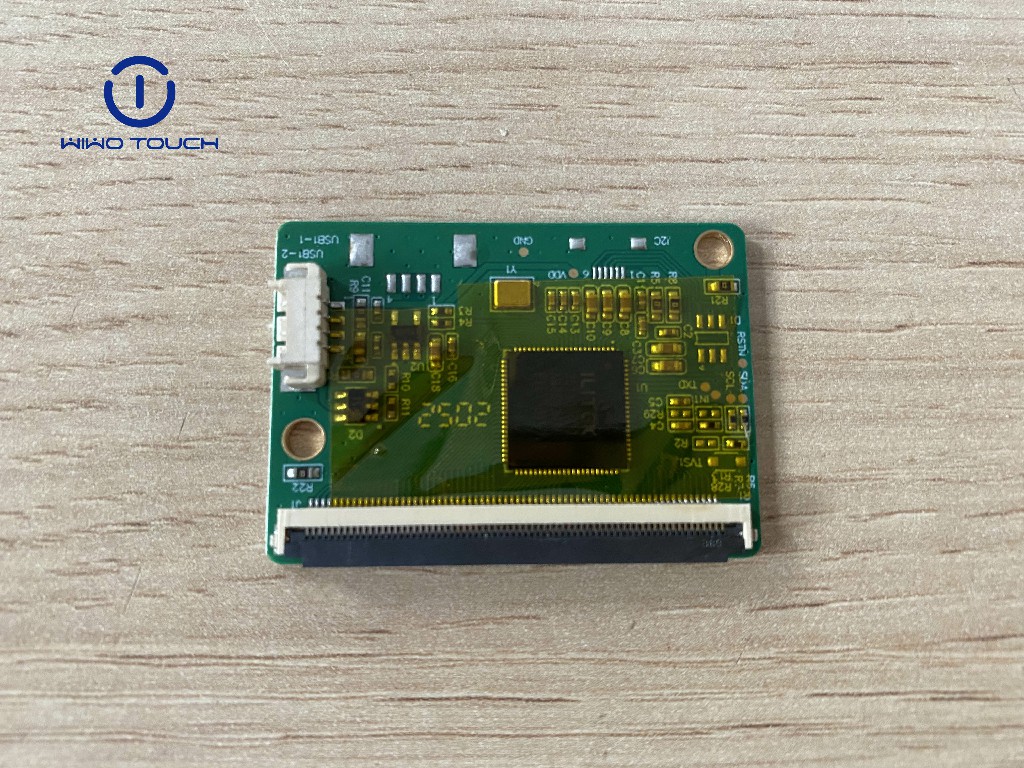

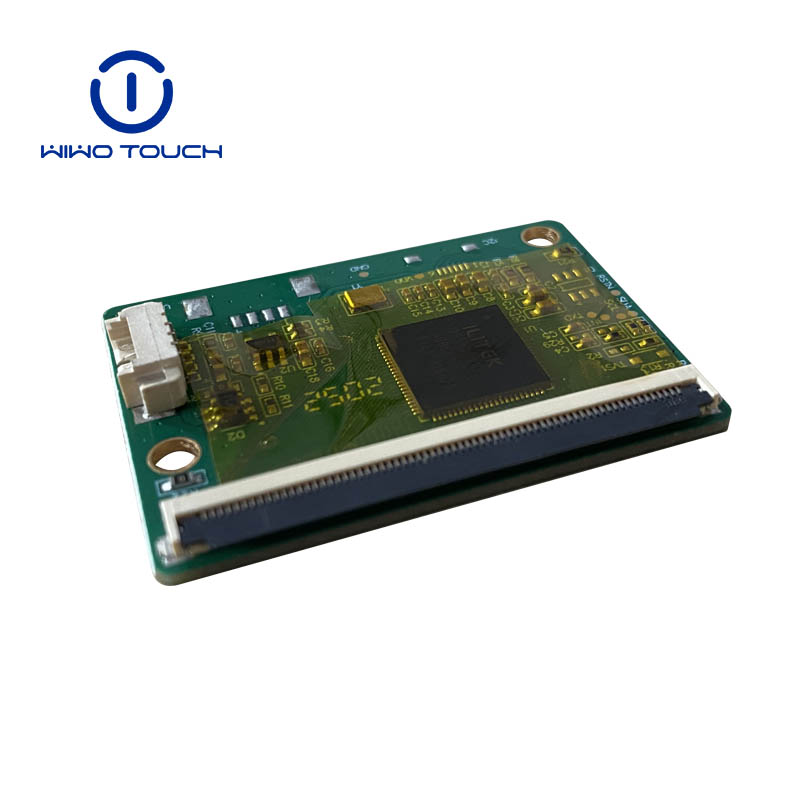

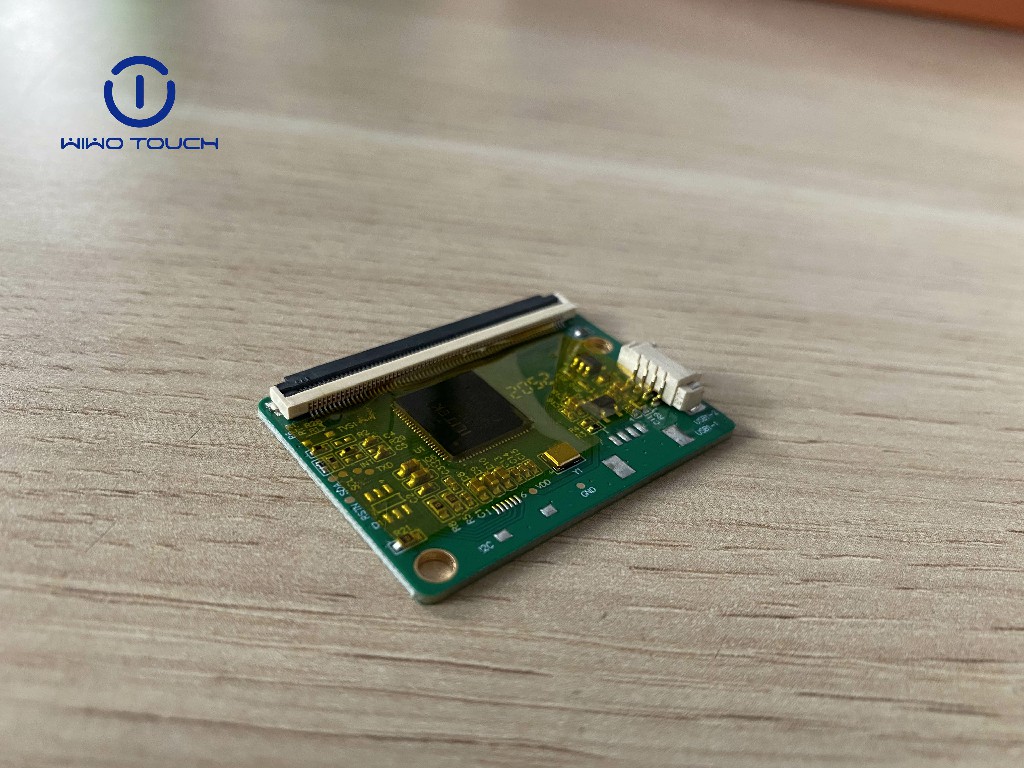

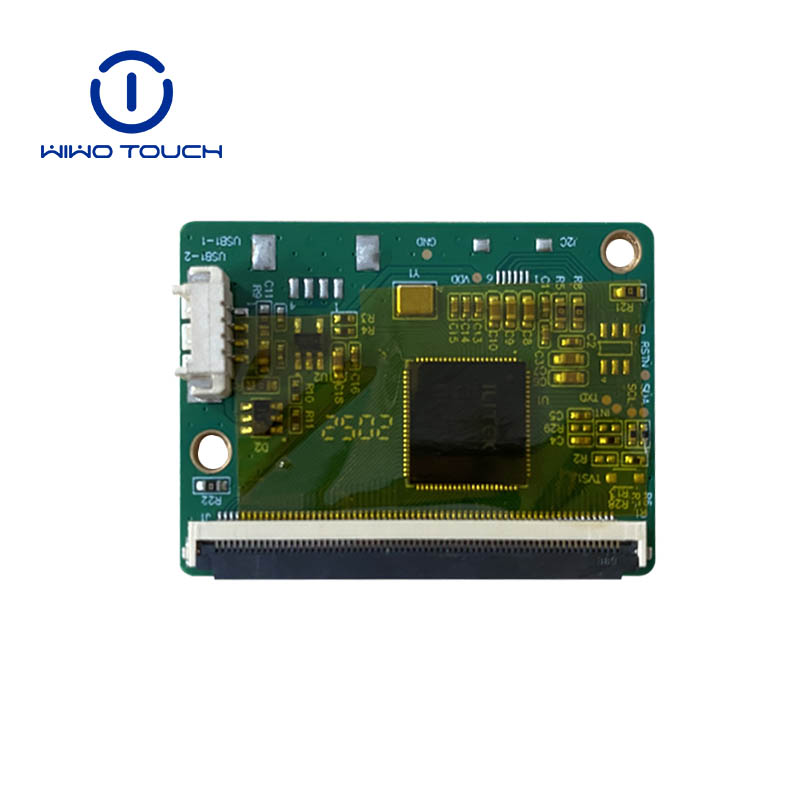

WIWOTOUCH Controller Board ILI2511 for Touch Screen


Wiwotouch Controller Board ILI2511 has a high adaptability to support a variety of operating systems on the market, high adaptability, low consumption, excellent response time and reading speed, it is a more versatile chip, convenient and efficient. We can help you custom controller board.

Parameters


 1. Interface  IIC / USB  4. Actual Channel number  Max. Tx: 23, Rx: 41 channels
 2. IC  ILITEK 2511  5. Linear  1PR: +/- 1mm, 10PT: +/- 2.5mm
 3. Channel number  Max. Tx + Rx: 68 channels  6. Power Consumption  Active mode: <15mA, Idle mode: 5mA
 7. OS Support  WindowsXP, Windows7, Windows8, WinCE, Android, Linux
 8.Touch Points Support  Max 10 points  12.  Max. Operating Frequency  100MHZ
 9. Input Voltage  USB, 5VDC  13. Report Rate

 100points/sec

(Target, need formal test report)

 10. Response Time  <10ms  14. Operating Temperature Range  -20°C~+85°C, ≤90%RH
 11. Fluctuating Frequency  12MHZ  15. Storage Temperature Range

 -40°C~+100°C, ≤90%RH
