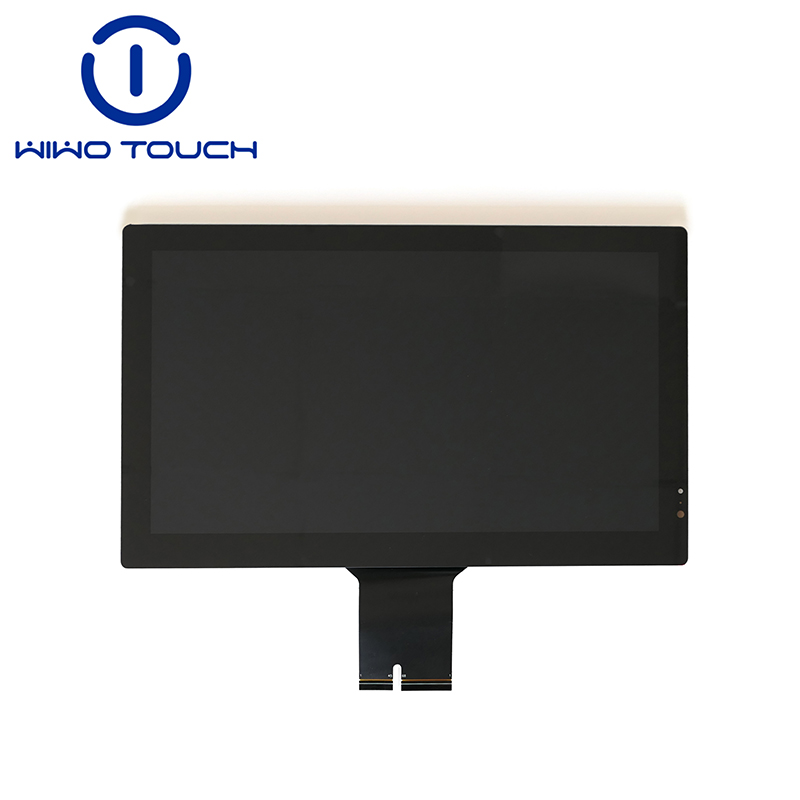

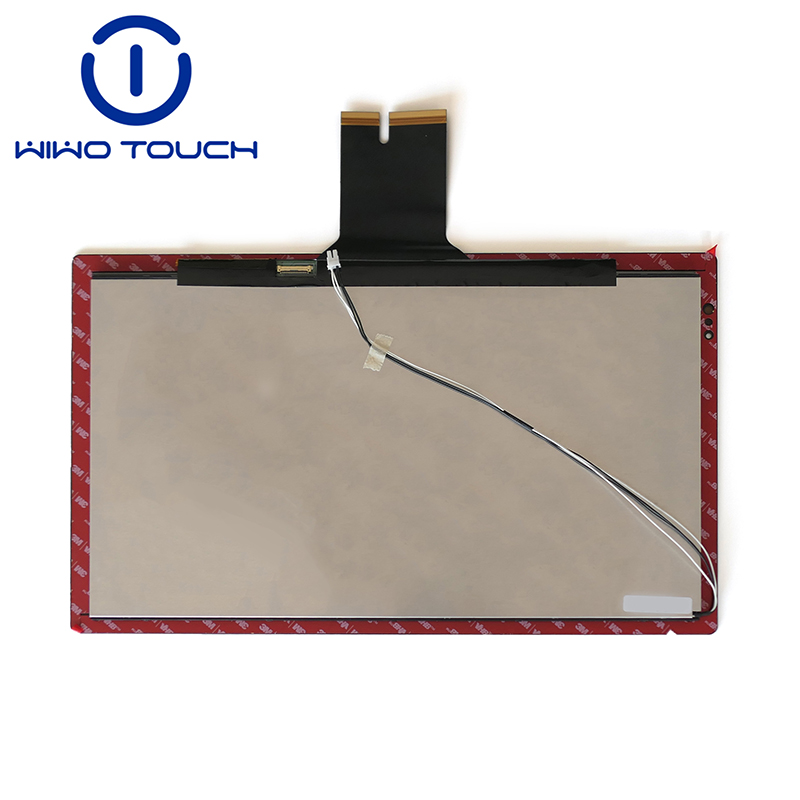

WIWO-15.6-inch-touch-display-module-PV156FHM-N20

  • WIWO-15.6-inch-touch-display-module-PV156FHM-N20
  • WIWO-15.6-inch-touch-display-module-PV156FHM-N20
  • WIWO-15.6-inch-touch-display-module-PV156FHM-N20
WIWO-15.6-inch-touch-display-module-PV156FHM-N20WIWO-15.6-inch-touch-display-module-PV156FHM-N20WIWO-15.6-inch-touch-display-module-PV156FHM-N20
  • Product attributes:
  • Size: 15.6 inches
  • Resolution: 1920 (RGB) × 1080, FHD, 141 PPI
  • External dimensions: 359.5 (W) × 223.8 (H) × 3.2 (D) mm
  • Active area: 344.16 (W) × 193.59 (H) mm
  • Product description:
  • BOE PV156FHM-N20 is a highly reliable 15.6-inch industrial display designed specifically for B-end commercial applications. It uses full HD IPS panel technology to meet industrial control application
  •  Download

BOE PV156FHM-N20 is a 15.6-inch LCD module product utilizing a-Si TFT-LCD technology. It is equipped with WLED backlighting, including an LED driver for backlight control, and does not feature touch functionality. However, it is compatible with WIWO's capacitive touch screens (e.g., 235ACBL156GG-V2.0; 339ACJY156GG-V1.0 and 145ACLL156GG-V1.0).


The PV156FHM-N20 is a high-reliability 15.6-inch industrial display specifically designed for B2B commercial applications. It utilizes full HD IPS panel technology to meet the bulk procurement needs of enterprise-level displays for professional scenarios such as medical equipment, industrial control systems, and self-service terminals.


Size15.6 inch
Outline dimension359.5 X 223.8 X 3.2(mm)
Active area
344.16 X 193.59(mm)
InterfaceeDP 30 pins (2 lanes)
Resolution1920 X 1080
Brightness400 cd/m² (Typ.)
Viewing angle85/85/85/85 (Typ.)(CR≥10)
Contrast Ratio800:1 (Typ.) (TM)
Support Color262K , 45% NTSC
Pixel FormatRGB Vertical Stripe
Operating ModeADS, Normally Black, Transmissive
Backlight typeWLED [10s4p] 30k Hours With LED Driver
Surface treatmentMatte
Weight350g (max.)
Power Supply

3.3V (Typ.)

Operating Temperature0 ~ 50 °C
Storage Temperature-20 ~ 60 °C
