WIWO 17.3 touch display module(BOE PV173FHM-N80)

  • WIWO 17.3 touch display module(BOE PV173FHM-N80)
WIWO 17.3 touch display module(BOE PV173FHM-N80)
  • Product attributes:
  • Size: 17.3 inch
  • Resolution: 1920×1080

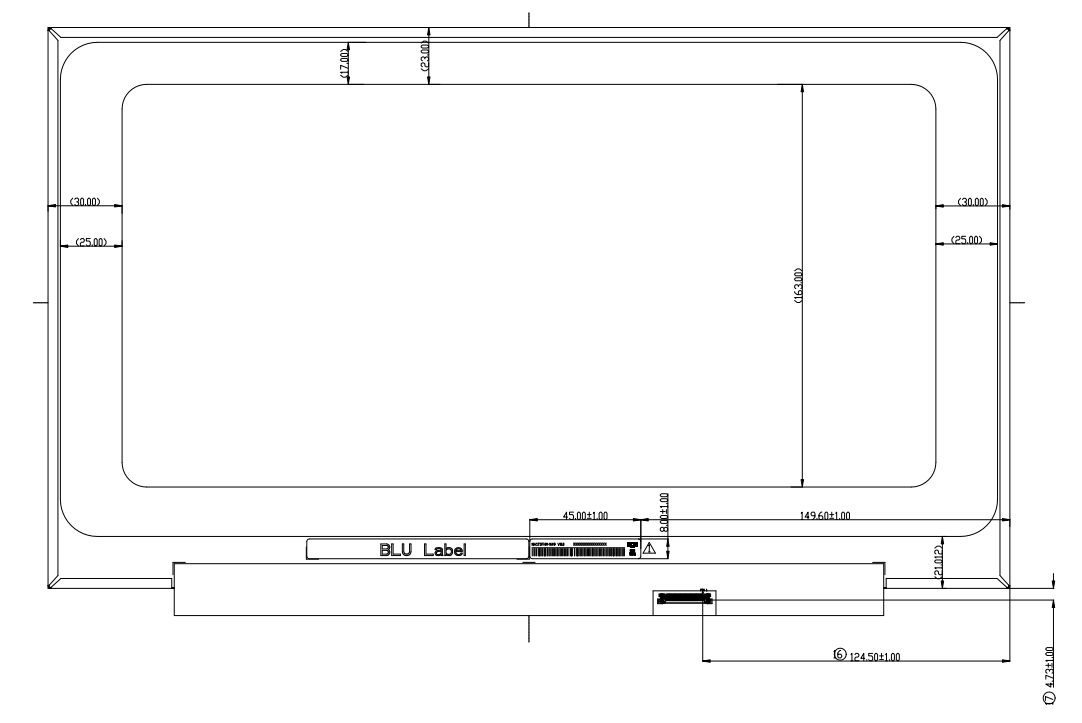

  • External dimensions: 389.888 (W) × 238.012 (H) mm
  • Active area: 381.888 (W) × 214.812 (H) mm (A.A)
  • Product description:
  • BOE 17.3" IPS LCD display module 1920×1080 250nits WLED eDP 30pins
  •  Download

BOE PV173FHM-N80 is a 17.3-inch industrial-grade LCD display module designed primarily for professional applications. Key parameters are as follows:

Brand

BOE

Model numberPV173FHM-N80

Panel Type

a-Si TFT-LCD

Size17.3inch
Touch function

Optional (Can be equiped with WIWO 17.3-inch

capacitive touch screen 465ACMY173GG-V1.0 or

CSR173GG0794-V2.0)

Outline Dimension

389.888 (W) × 238.012 (H) mm

Active Area

381.888 (W) × 214.812 (H) mm (A.A)

Resolution1920×1080

Aspect Ratio

16:9 (W:H)

Interface TypeeDP
Brightness250 (Typ.)
Contrast Ratio800:1 (Typ.)
Viewing Angle85/85/85/85 (Typ.)(CR≥10) (L/R/U/D)
Display Colors16.7M
Backlight TypeWLED
Interface Pins30 Pins
Operating Temp.0 ~ 50 °C
Storage Temp-20 ~ 60 °C
