WIWO 21.5-inch touch display Solution (GV215FHB-N14)

  • WIWO 21.5-inch touch display Solution (GV215FHB-N14)
  • WIWO 21.5-inch touch display Solution (GV215FHB-N14)
WIWO 21.5-inch touch display Solution (GV215FHB-N14)WIWO 21.5-inch touch display Solution (GV215FHB-N14)
  • Product attributes:
  • Size: 21.5 inch
  • Resolution: 1920 (RGB) × 1080, FHD 102 PPI
  • External dimensions: 487.2 (W) × 281 (H) × 1.32 (D) mm
  • Active area: 476.64 (W) × 268.11 (H) mm
  • Product description:
  • GV215FHB-N14 is a 21.5" diagonal a-Si TFT-LCD display panel product from BOE, with WLED backlight which makes the lcd display readable in sunlight.
  •  Download

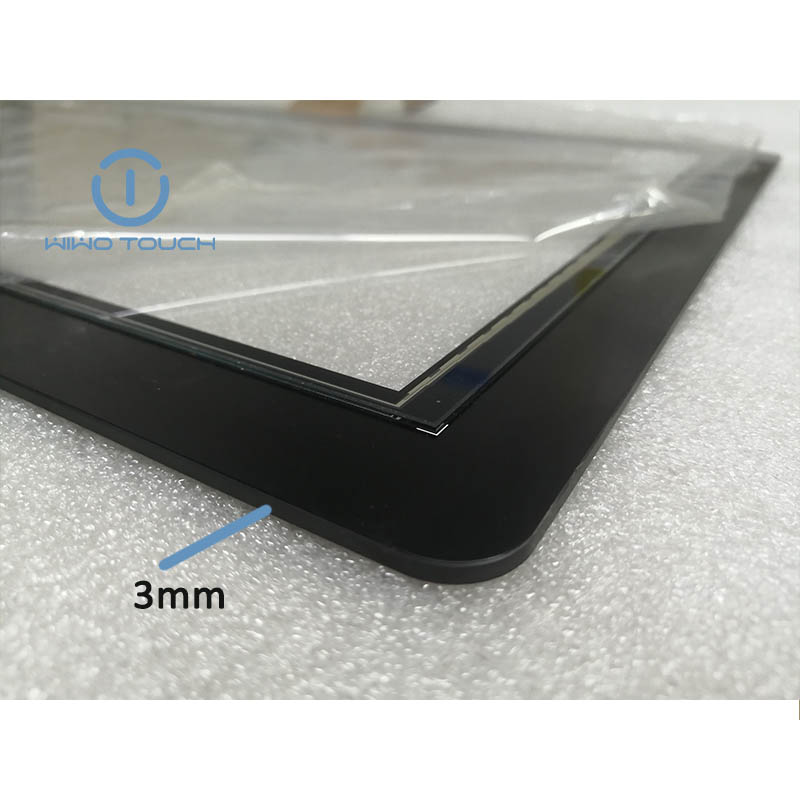

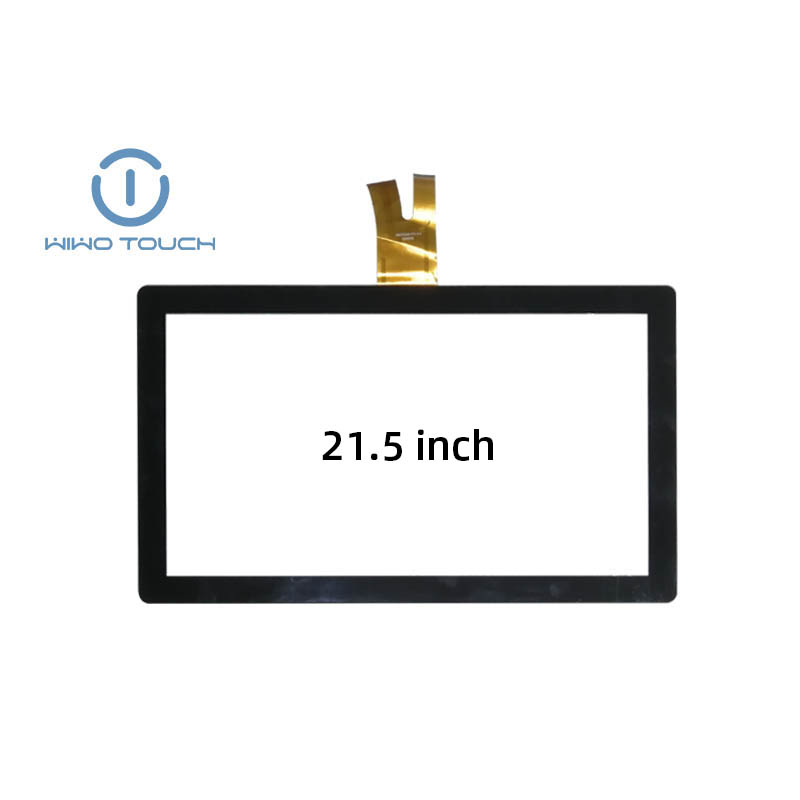

The GV215FHB-N14 is a 21.5-inch a-Si TFT LCD display developed by BOE, featuring WLED backlight technology to ensure clear visibility even in bright environments. This panel does not support touch functionality by default, but WIWO offers customization services, such as adding a capacitive touch panel (TP). Customers may also choose our standard touch solutions, such as CSR215GG211-V1.0 or 530ACJY215GG-V2.0.


This display features wide temperature operation capabilities, capable of stable operation in environments ranging from -20°C to 85°C, with an even broader storage temperature range of -30°C to 85°C. Its features include landscape/portrait mode switching and anti-glare matte finish, making it suitable for demanding applications such as industrial control and digital signage. It employs a 6-source + 3-gate driver IC design to ensure efficient and stable signal transmission.


If you plan to integrate a 21.5-inch touch display module into your device, please feel free to contact WIWO for the latest production parameters and technical details to optimize your product design.


BrandBOE
Model P/NGV215FHB-N14
Diagonal Size21.5 inch
Interface TypeLVDS (2 ch, 8-bit) 30 pins Connector
Panel TypeA-Si TFT-LCD Module
Resolution1920(RGB)×1080, FHD  102PPI
Luminance1000 cd/m²
Pixel FormatRGB Vertical Stripe
Outline Dimension487.2(W)×281(H)×1.32(D) mm
Active Area476.64(W)×268.11(H) mm
Viewing Angle89/89/89/89 (Typ.)(CR≥10) Left / Right / Up / Down
Support Color16.7M   74% NTSC
Weight392g (Typ.)
TreatmentAntiglare (Haze 25%), Hard coating (3H)
Contrast Ratio1000:1 (Typ.) (TM)
Response Time14 (Typ.)(G to G)
Operating ModeADS, Normally Black, Transmissive
Transmittance3.7% (Typ.)(with Polarizer)
Touch Panel Optional
D-IC DetailCOF Built-in 6 source + 3 gate chips
Power Supply5.0V (Typ.)
Operating Temperature-20 ~ 85 °C
Storage Temperature-30 ~ 85 °C
