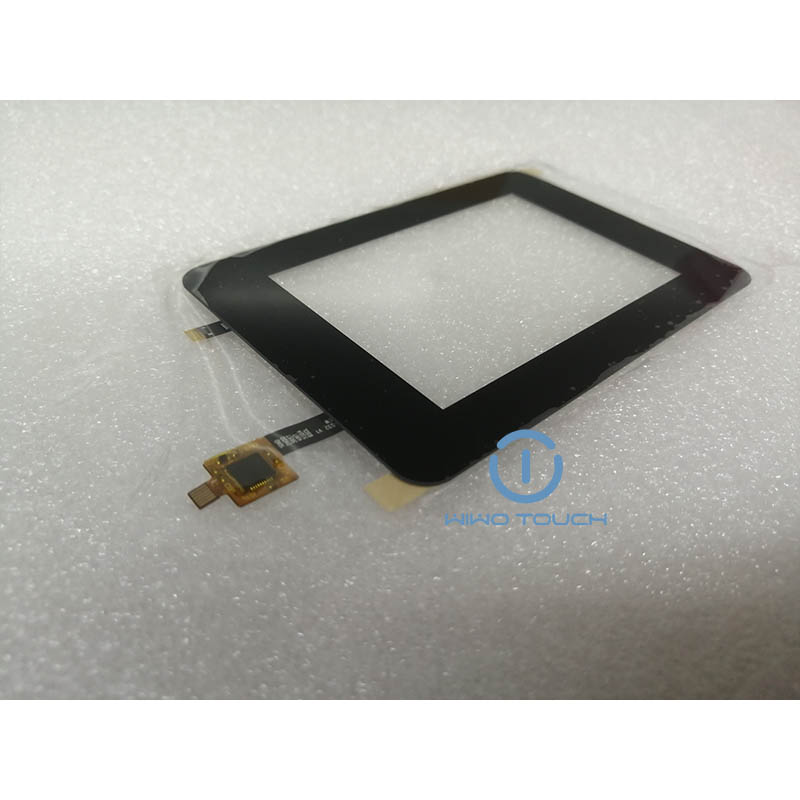

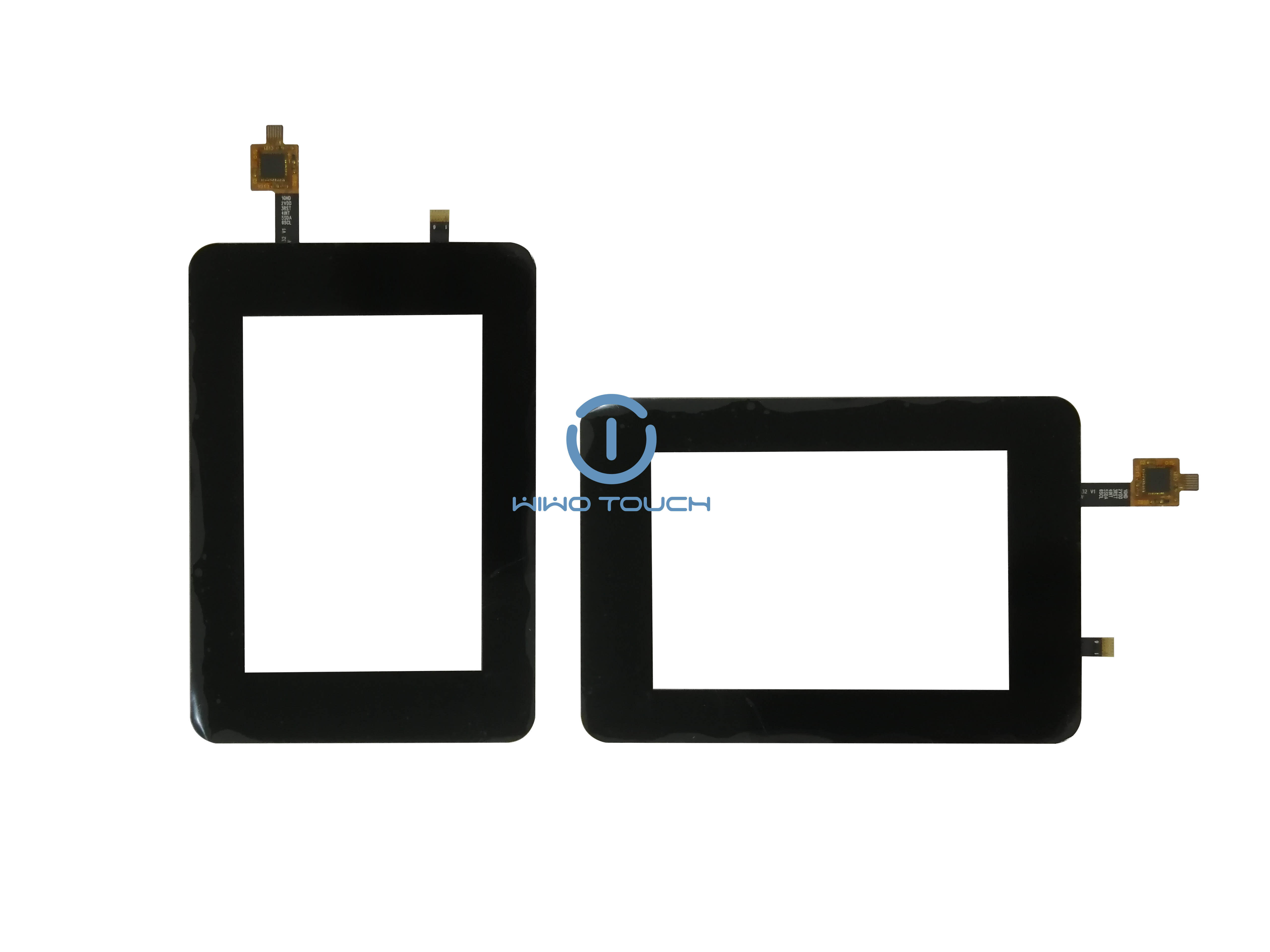

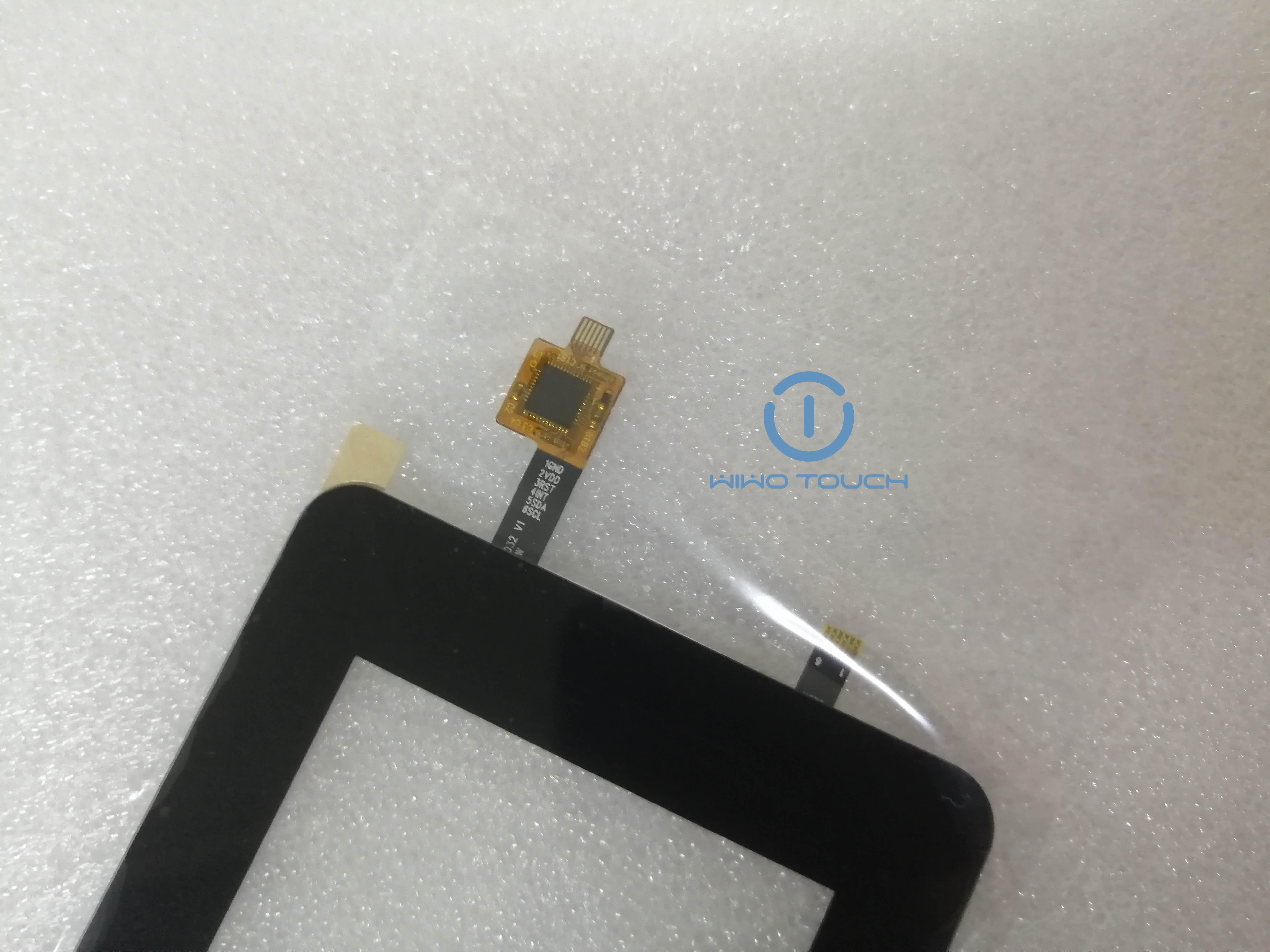

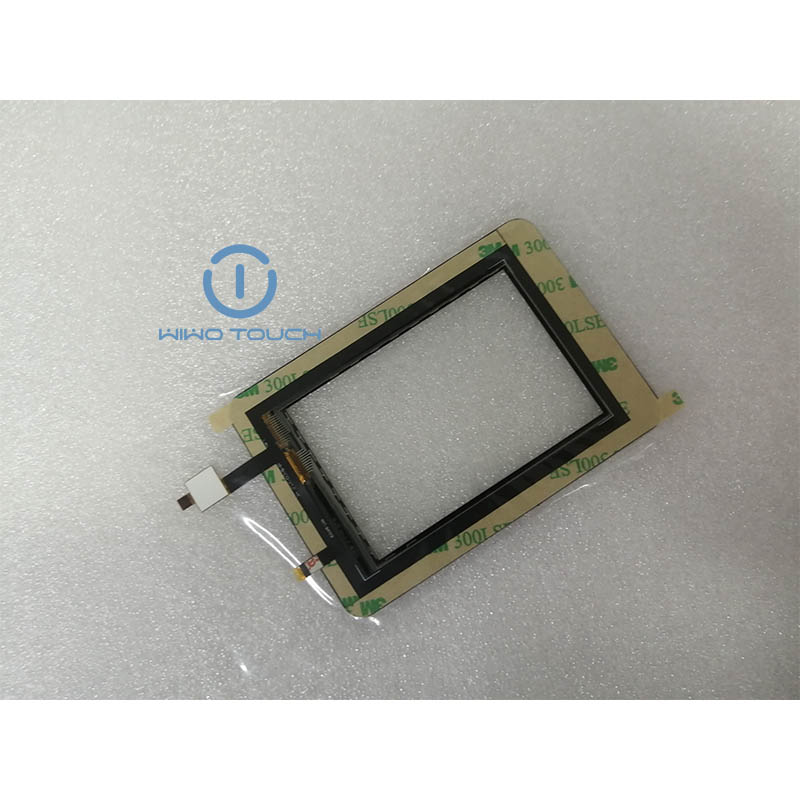

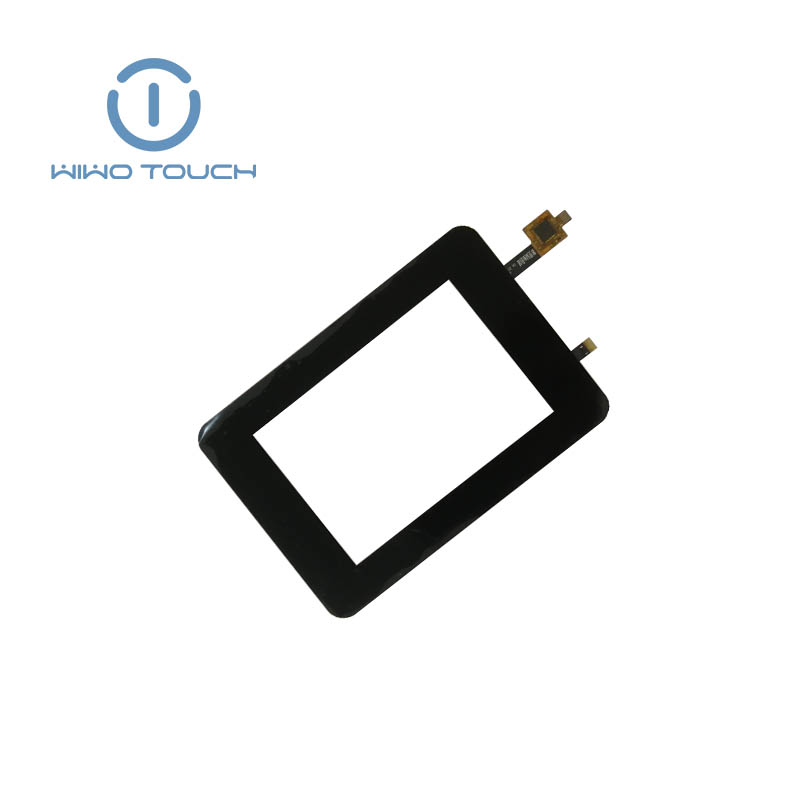

WIWO 3.5 inch projected capacitive touch screen

The C4D035GG136 (PCAP) is an integrated touch screen module with advanced capacitive technology that uses advanced sensor technology and algorithms to accurately recognise finger positions and movements for fine-grained operation. It is designed for a wide range of systems and devices to provide seamless integration and superior user experience. It can be equipped with a resolution of 240x 320 dots, an effective display area size of 49.56 x 74.04 mm, and an exterior size of 54.5 x 83 mm. The module is built-in with the FT5336IC, which supports multi-touch and transfers data via an I2C interface. The front side of the product adopts cover glass that can achieve extremely high hardness (>6H). Compared with the acrylic of resistive touch panels, capacitive touch panels have higher transparency and are more robust and scratch-resistant, bringing users a better - visual experience.

Application areas:

 -Instrumentation: handheld instruments, police law enforcement equipment, etc. are widely used 3.5-inch touch screen as a display terminal.

 -Smart home: such as visual doorbells, attendance machines and other smart home products often use 3.5-inch touch screen.

 -Medical industry: With the popularity of home medical care, portable medical instruments often use 3.5-inch touch screen as the display interface.

 -Home appliance industry: more and more home appliances choose 3.5-inch touch screen as the display and control interface when updating.

 -Communication equipment: Although most of the modern communication equipment using high-definition screen, but many function machines and walkie-talkies, etc. still use 3.5-inch touch screen.
