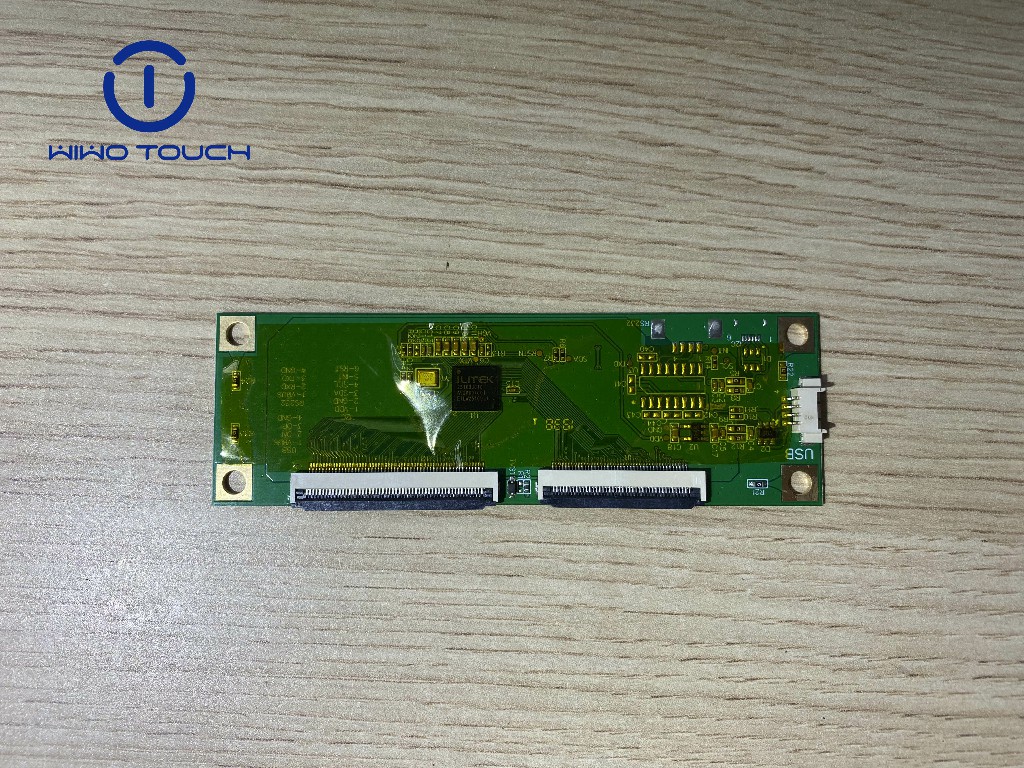

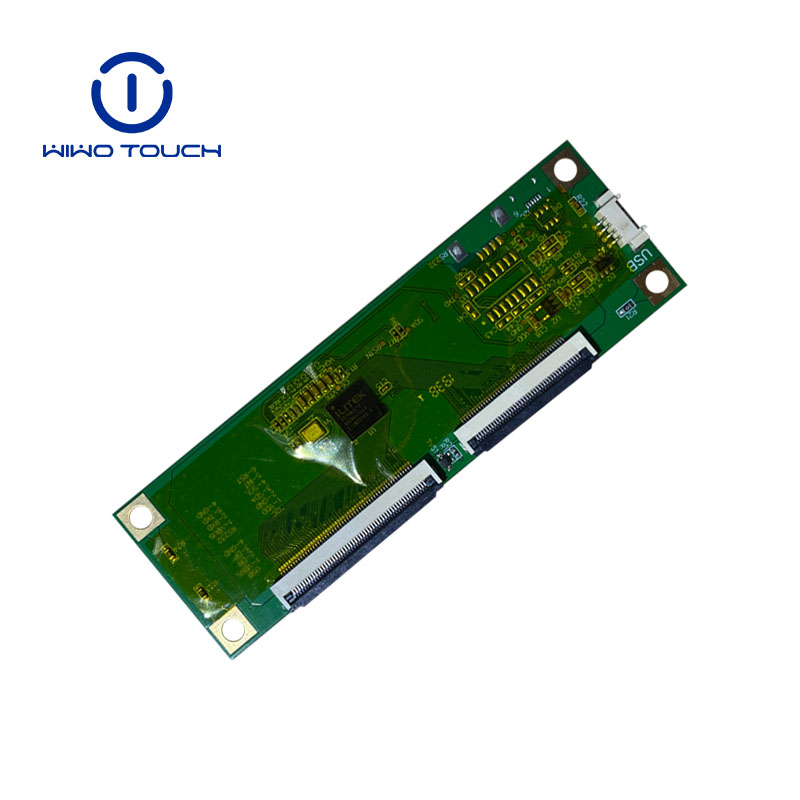

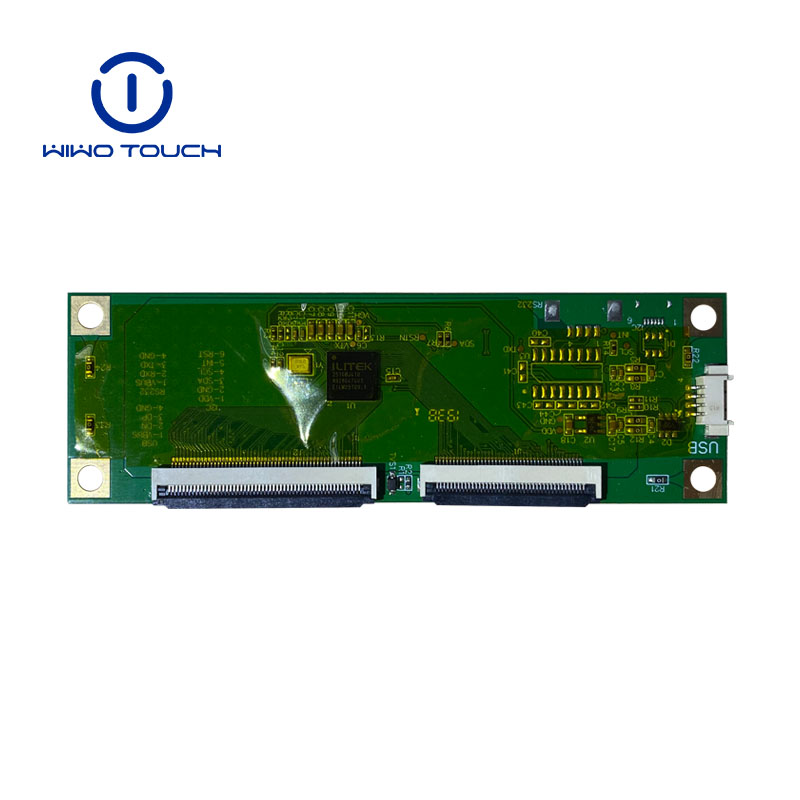

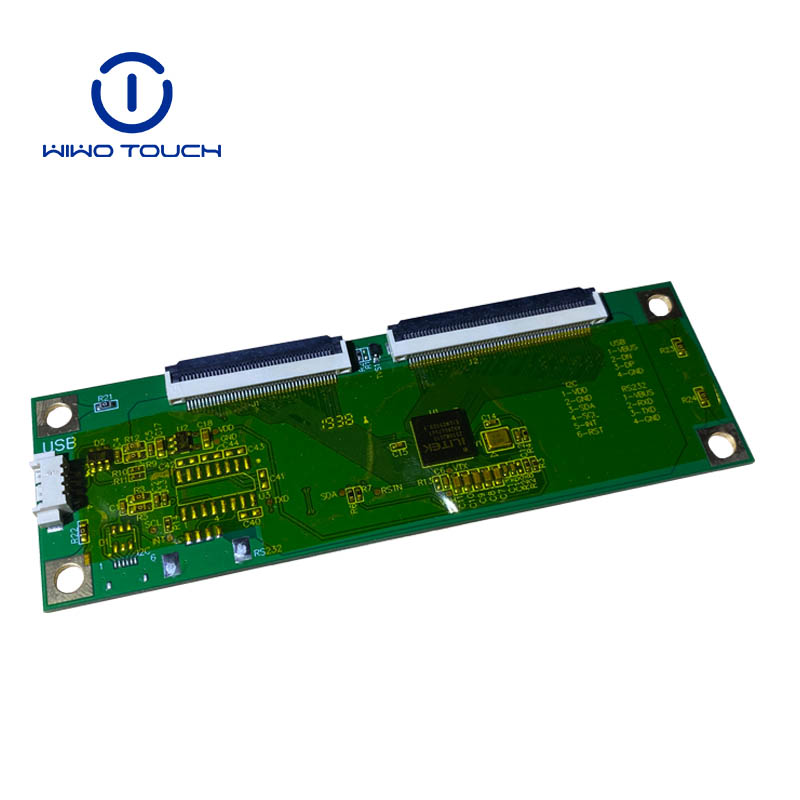

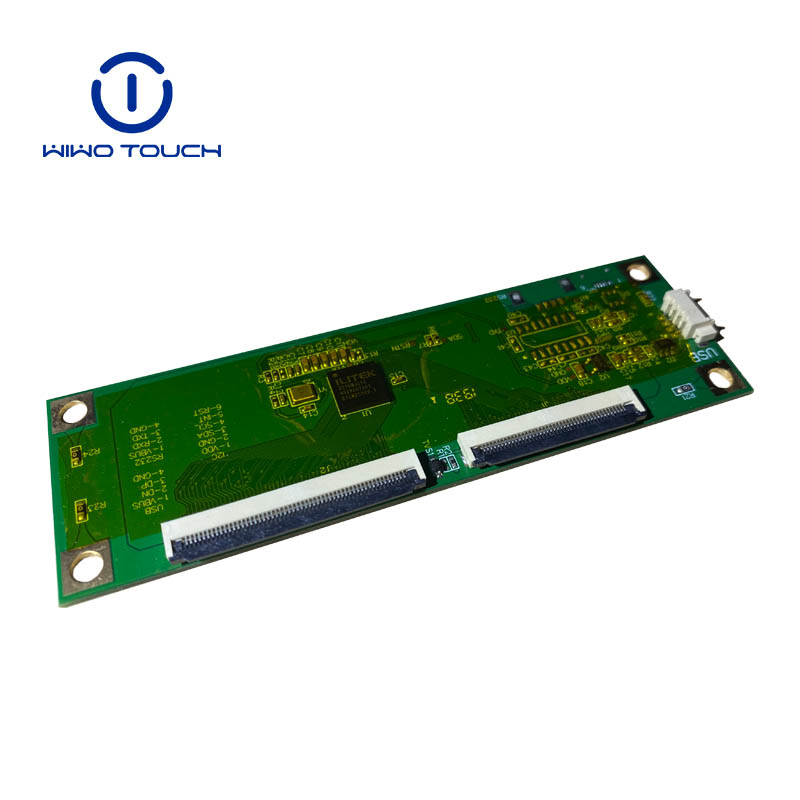

WIWOTOUCH Controller Board ILI2510 for Touch Screen
Wiwotouch Controller Board ILI2510 has a high adaptability to support a variety of operating systems on the market, high adaptability, low consumption, excellent response time and reading speed, it is a more versatile chip, convenient and efficient. For the realization of touch screen with the customer between the host signal conversion, To achieve this through a virtual mouse and keyboard to guest host operation.
We can help you custom controller board as well.
Parameters
| 1. Interface | IIC / USB / RS232 | 4. Actual Channel number | Max. Tx: 36, Rx: 60 channels |
| 2. IC | ILITEK 2510 | 5. Linearity | 1PR: +/- 1mm, 10PT: +/- 2.5mm |
| 3. Channel number | Max. Tx 42 + Rx: 64 channels | 6. Power Consumption | Active mode: <15mA, Idle mode: 5mA |
| 7. OS Support | WindowsXP, Windows7, Windows8, WinCE, Android, Linux | ||
| 8.Touch Points Support | Max 10 points | 12. Max. Operating Frequency | 100MHZ |
| 9. Input Voltage | USB, 5VDC | 13. Report Rate | 100points/sec (Target, need formal test report) |
| 10. Response Time | <10ms | 14. Operating Temperature Range | -20°C~+85°C, ≤90%RH |
| 11. Oscilator Frequency | 12MHZ | 15. Storage Temperature Range | -40°C~+100°C, ≤90%RH |
