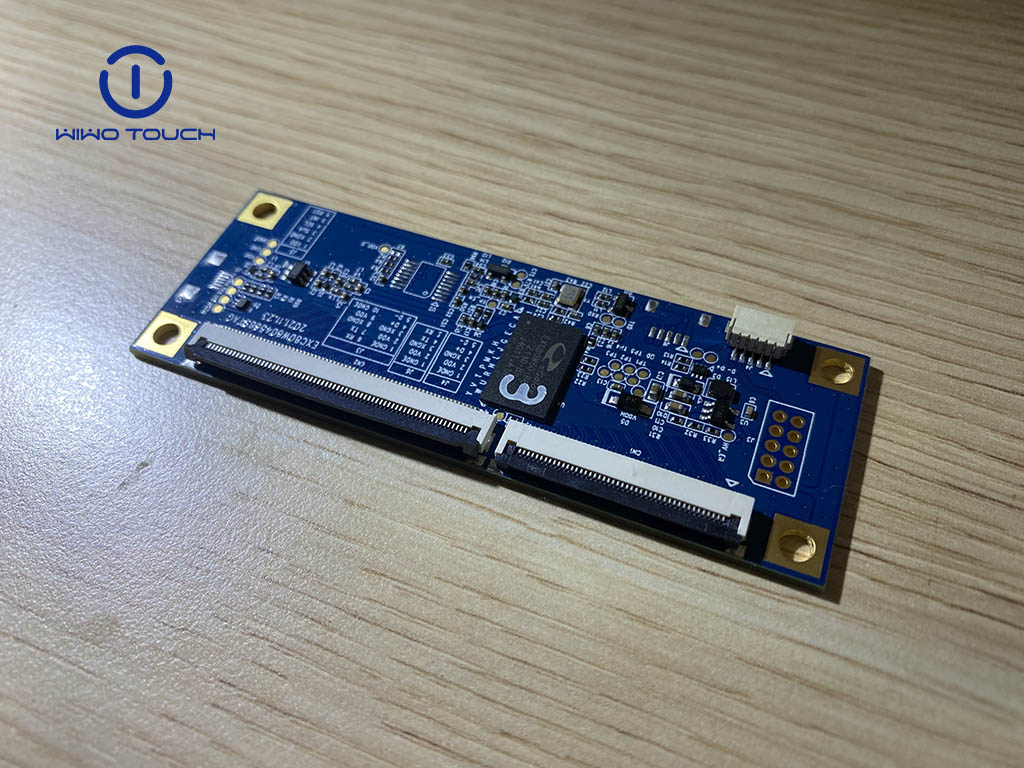

The EXC80W46 controller board is a projected capacitive (PCAP) touch screen controller that powered by EETI's high performance MCU EXC80W46. By integrating the advantages of self and mutual capacitance sensing technology, built-in high driving voltage transceiver and a powerful MCU, this controller incorporate most desired features to boost the noise immunity, and support high demand applications in most categories.
| 1. 接口 / Interface | I2C、USB、RS232 | 4. 线性 / Linearity | Line drawing accuracy : 1pt +/- 1mm offset /10mm Touch (point) accuracy : 1pt +/- 1mm |
| 2. 芯片 / IC | EXC80W60 | 5. 功耗 / Power Consumption | Active Mode: < 200mA Idle Mode : < 100mA |
| 3. 通道数 / Channels of Panel | Max. Tx:44 Rx:66 channels (include shielding pin) | 6. 支持点数 / Support Points | max 10 points |
| 7. 运行系统 / Oparating System | Windows、WinCE、Android、Linux | ||
| 8. 输入电压 / Input Voltage | 3.5V~5.5V.Typical 5V. | 11. 运行温度 / Operating Temperature | -40 to 85 ℃ |
| 9. 反应时间 / Response Time | Average < 25 ms | 12. 储存温度 / Storage Temperature | -40 to 90 ℃ |
| 10. 读取速度 / Report Rate | ＞100 Hz | 13. 相对湿度 / Relative Humidity | 95% at 60 ℃, RH Non-condensing |
