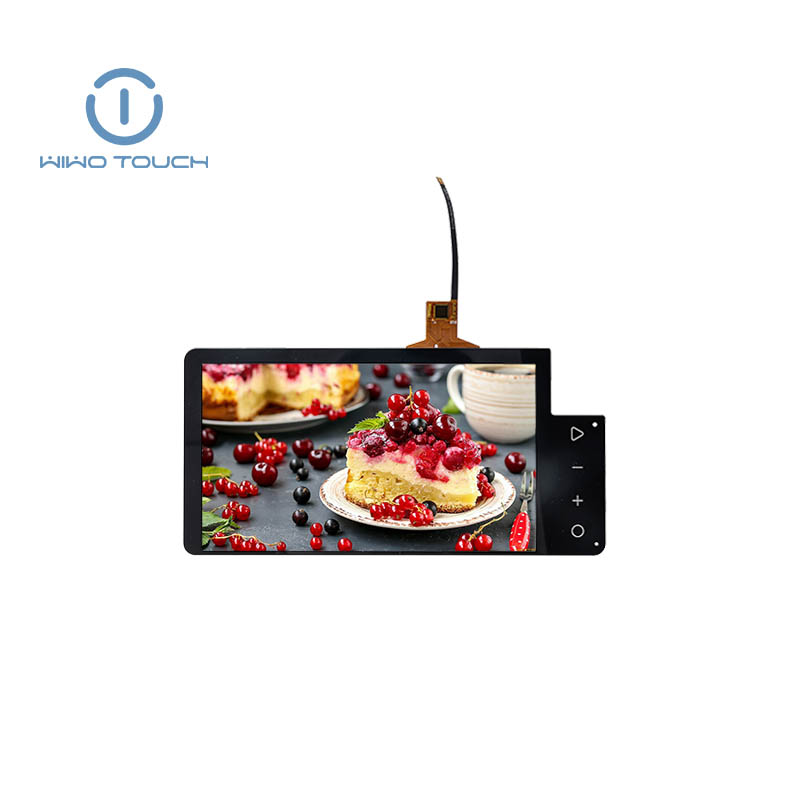

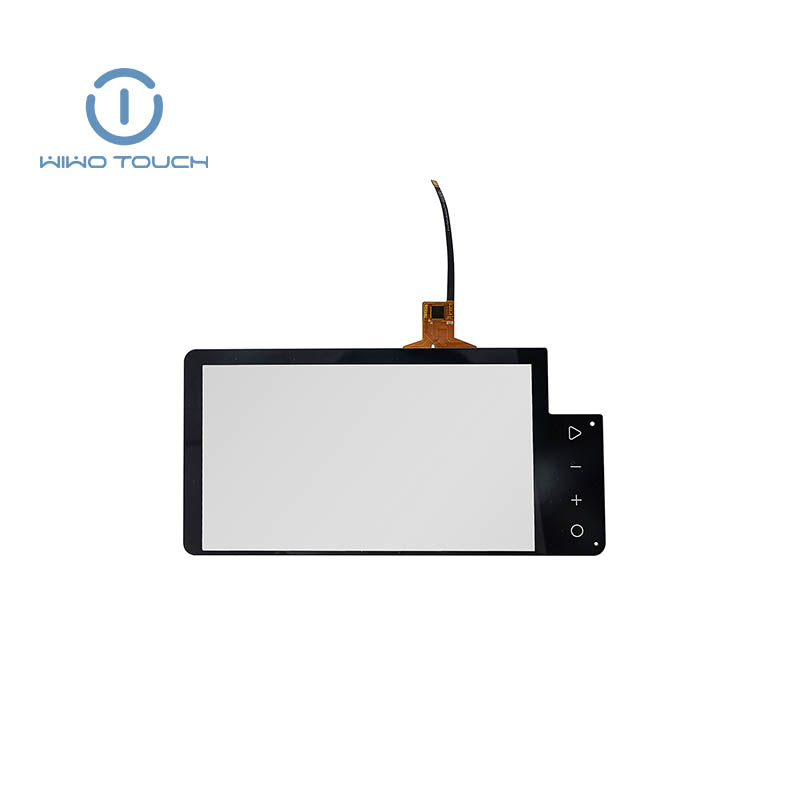

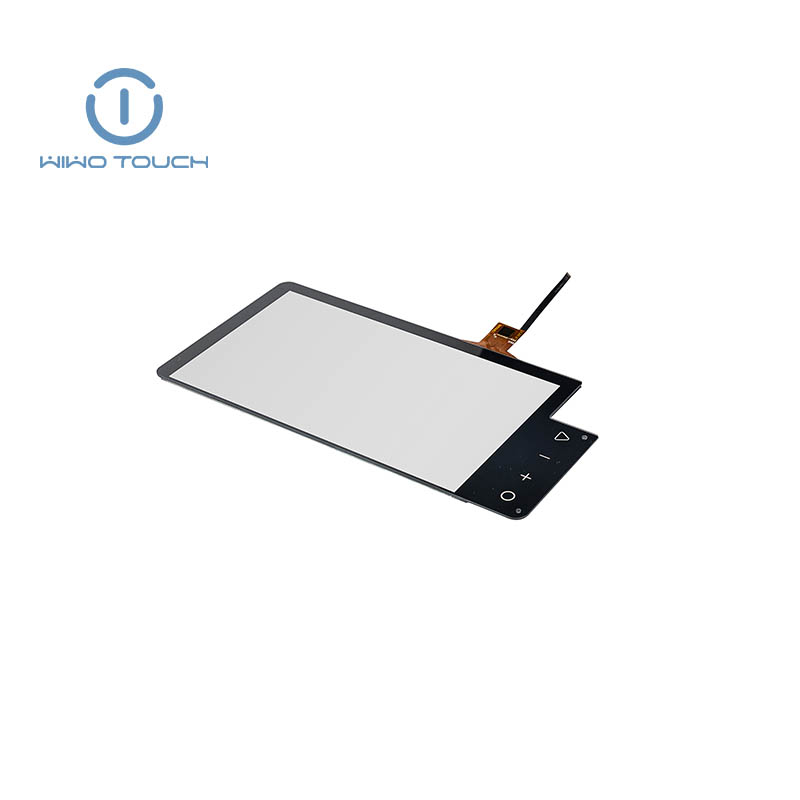

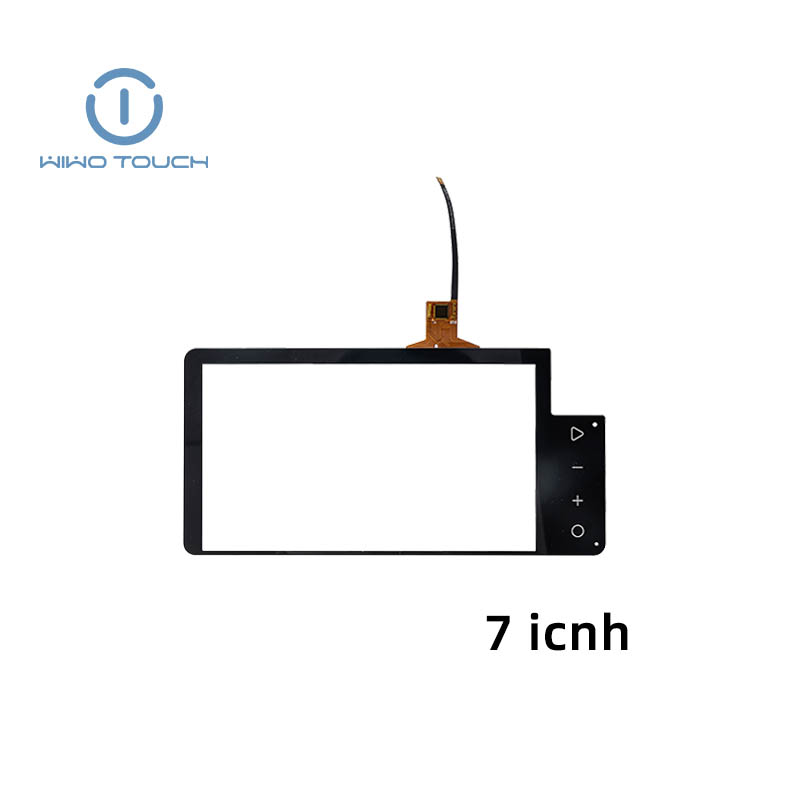

WIWOTOUCH 7-inch projected capacitive touch screen

This is a 7-inch projection capacitive touch screen. According to customer requirements, this product is designed with multi-touch, which is applied in the intelligent central control system of automobile and the chip of GT911. In order to enable the product to be used in extreme environments, we will coating the glass surface of the product to increase the resistance of the glass. The explosion-proof and anti-seismic of glass can be IK10, and the waterproof and dustproof can be IP56. Please contact us for more details. WIWOTOUCH products can be widely used in financial equipment, medical equipment, utility equipment, educational equipment, leisure and entertainment, smart home equipment, tailored for you to create a suitable service.

• Brand Name: WIWOTOUCH

• Interface Type: IIC/USB

• Products Status: OEM/ODM/customized

• IC：GT911

• Thickness of the cover glass: 1.1mm

• Total product thickness: 1.85±0.1mm

• Cover Lens VA: 154.3±0.2*86±0.2MM

• Certification: RoHS, ISO9001, Reach

• Touch Screen Type: Capacitive touch screen
