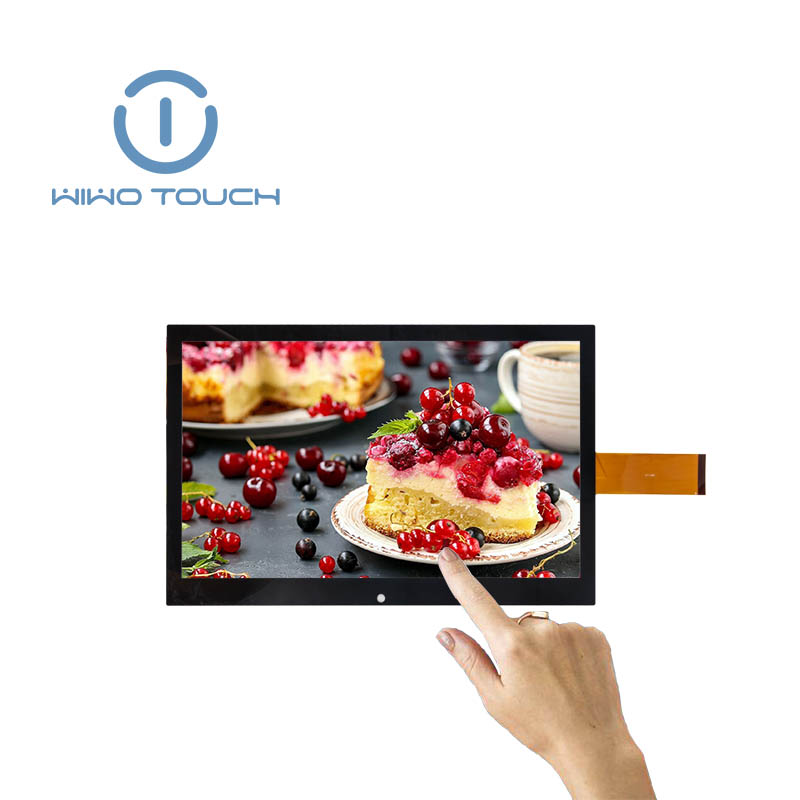

WIWOTOUCH 15.6-inch projected capacitive touch screen

---

This is a 15.6-inch projection capacitive touch screen. According to customer requirements, this product is designed with multi-touch, which can be applied to self-service payment machines. ILI2511 chip has higher cost performance and sensitivity. In order to make the product can be used in extreme environment, we will coating the surface of the glass to increase the resistance of the glass. The explosion-proof and earthquake resistance of the glass can be IK10, and the waterproof and dustproof of the glass can be IP56. Please contact us for details. WIWOTOUCH products can be widely used in financial equipment, medical equipment, utility equipment, educational equipment, leisure and entertainment, smart home equipment, tailored for you to create a suitable service.

---

• Brand Name: WIWOTOUCH

• Interface Type: IIC/USB

• Products Status: OEM/ODM/customized

• IC：ILI2511

• Thickness of the cover glass: 0.7mm

• Total product thickness: 1.95±0.1mm

• Cover Lens VA: 344.66±0.2*194.09±0.2MM

• Cover Glass Dimension: 372.8±0.15*235±0.15*0.7±0.05MM

• Certification: RoHS, ISO9001, Reach

• Touch Screen Type: Capacitive touch screen

Package
