1. Product Introduction

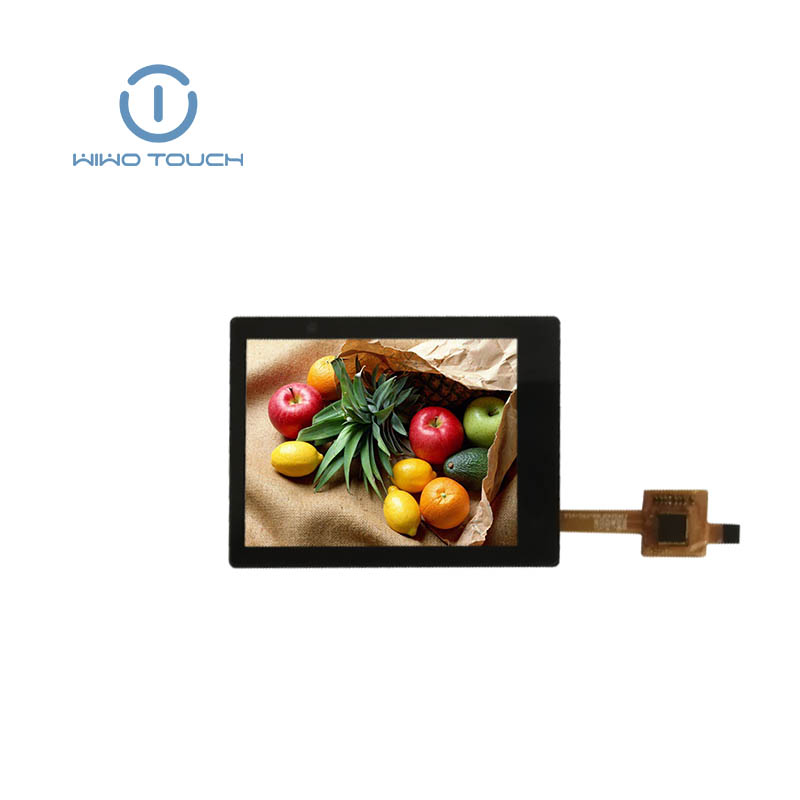

This 2.4-inch single-point capacitive touch screen is equipped with original FT6336U touch IC and 0.7mm tempered glass cover, adopting mature G+F structure. Featuring ultra-thin design, low power consumption, precise touch and high stability, it is specially developed for small-size interactive devices such as embedded devices, handheld devices, smart home products and micro industrial control panels. With plug-and-play and easy integration, it is a cost-effective accessory for small-size touch devices.

2. Core Advantages

• Stable Touch Chip: Adopts FocalTech FT6336U original IC with strong anti-interference ability, no touch drift or delay, ensuring stable operation in various scenarios.

• Ultra-thin & Durable Cover: 0.7mm ultra-thin tempered glass with scratch-resistant and fingerprint-proof surface, high light transmittance without affecting display effect, suitable for lightweight equipment design.

• Ultra-low Power Consumption: Extremely low standby power consumption effectively extends device battery life, ideal for battery-powered portable devices.

• Wide Compatibility & Easy Development: Standard I2C interface with interrupt and reset functions, compatible with most single-chip microcomputers and embedded main controllers for rapid mass production.

• Strong Environmental Adaptability: Wide operating temperature range, stable touch performance in high and low temperature environments, suitable for household, commercial and light industrial scenarios.

3. Core Specifications

• Screen Size: 2.4 Inch

• Touch Type: Capacitive Single-point Touch

• Cover Thickness/Material: 0.7mm Tempered Glass

• Touch IC: FT6336U

• Interface: I2C

• Working Voltage: 2.6V-3.6V (Typical 3.3V)

• Operating Temperature: -20℃~+70℃

4. Application Scenarios

Widely used in handheld testing equipment, small smart home control panels, embedded development devices, micro industrial touch terminals, IoT small interactive devices and other portable smart terminals.
