The following is a technical specification for the compatibility between the BOE NV126B5M-N42 display and the Chenwei capacitive touchscreen (624ACMY126GG-V1.0).

BOE NV126B5M-N42 12.6-inch LCD Display Technical Specifications

Panel Type: a-Si TFT-LCD

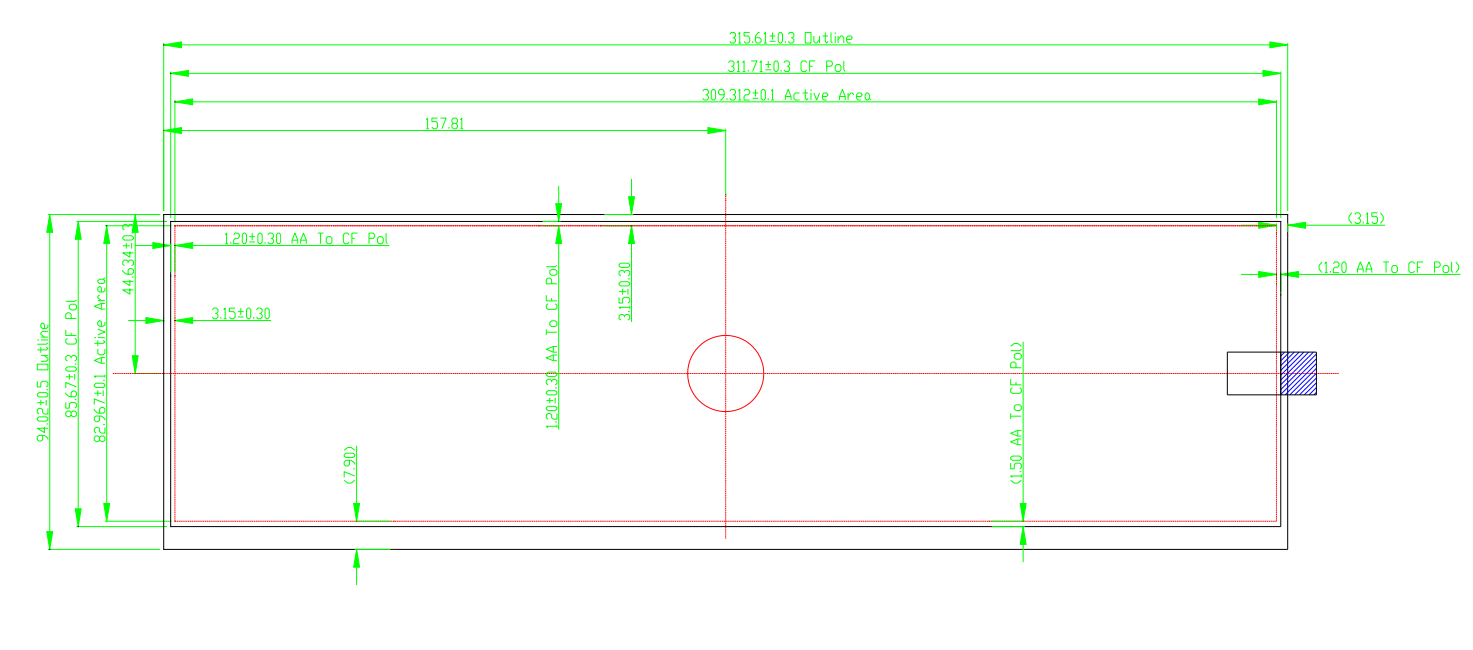

External Dimensions: 315.61 (W) × 94.02 (H) mm

Active Area: 309.312 (W) × 82.9665 (H) mm

Resolution: 1920 × 515

Display Colors: 16.7M (8-bit)

Brightness: 400 (Typ.)

Contrast Ratio: 1200:1 (Typ.) (Transmission)

Response Time: 30 (Typ.) (Tr+Td) ms

Viewing Angle: 85/85/85/85 (Typ.) (CR≥10)

Interface Type: eDP (2 lanes), 30 pins

Power Voltage: 3.3V (Typ.)

Surface Treatment: Matte (Haze 40%), Hard Coating

Operating Temperature: 0 ~ 60°C

Storage Temperature: -20 ~ 65°C

Weight: 175g (Max.)

Compatibility Note with WIWO Capacitive Touchscreen (624ACMY126GG-V1.0)

Although the NV126B5M-N42 does not have native touch functionality, its mechanical and electrical characteristics are fully compatible with WIWO's 12.6-inch capacitive touchscreen (model 624ACMY126GG-V1.0). For more details, please contact us at any time (sales03@wiwotouch.com)!
