1. Product Overview

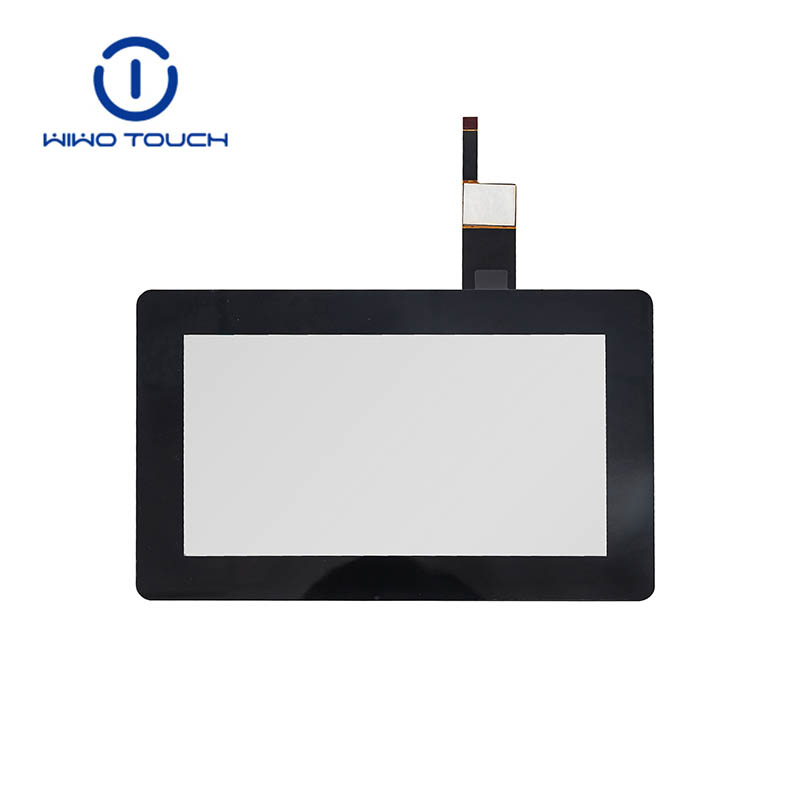

Our 7 Inch IIC Capacitive Touch Screen Panel is customized industrial-grade capacitive touch digitizer specially matched with standalone LCD display. Equipped with mainstream FT5446 touch drive IC, this capacitive touch panel adopts G+F structure (0.7mm cover lens + 0.55mm ITO film), featuring ultra-stable touch performance, high light transmittance and scratch-resistant 6H surface hardness.

Support full custom size modification, wide temperature working range, stable performance under high humidity environment, widely used in industrial control equipment, medical display, smart kiosk, POS machine and other industrial touch display terminals.

2.Core Competitive Advantages

Stable FT5446 Drive IC

Built-in FT5446 capacitive touch control IC, IIC communication interface, fast touch response, anti-interference ability, support multi-point touch, compatible with most industrial main control boards.

High Light Transmittance & Thin Structure

0.7mm thick tempered glass cover lens + 0.55mm ITO conductive film, total thickness only 1.45±0.1mm, light transmittance ≥86%, will not reduce LCD screen display brightness, thin design saves internal equipment space.

Industrial Grade Hardness & Durability

Cover lens surface hardness ≥6H, effectively resist daily scratch, friction and mechanical wear, long service life for industrial continuous operation.

Ultra-Wide Temperature & Humidity Adaptation

Operating environment: -10℃ ~ +60℃, humidity ≤90%RH

Storage environment: -20℃ ~ +70℃, humidity ≤90%RH

Work normally in cold factory, high-temperature workshop, humid equipment room without touch failure.

Full Customization Support

Support custom touch panel outline size, FPC cable length, pin definition, black border width, anti-glare/anti-fingerprint coating according to customers’ LCD screen and equipment shell drawing.
