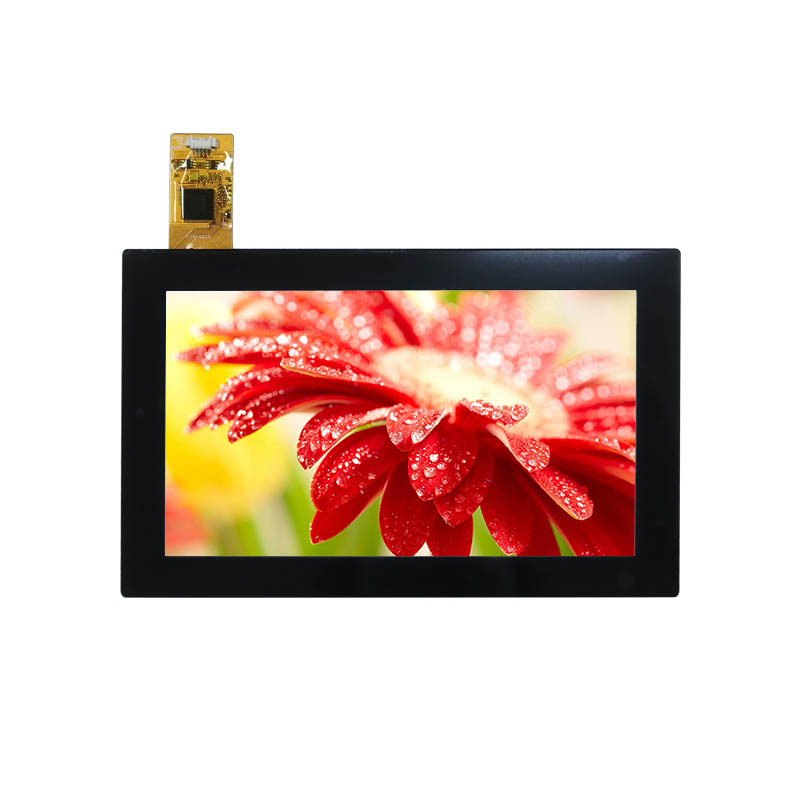

7 inch Tianma Touch Display Module (TM070RDH13)

  • 7 inch Tianma Touch Display Module (TM070RDH13)
7 inch Tianma Touch Display Module (TM070RDH13)
  • Product attributes:
  • Size:7inch
  • Model number: TM070RDH13 & CCD070GG07777
  • Touch screen: optional
  • Product description:
  • The TM070RDH13 is a 7-inch TFT LCD display module from Tianma that has become an ideal choice for a number of applications due to its excellent display performance and reliable quality.
  •  Download

The Tianma Display TM070RDH13 is a 7-inch TFT LCD display module that offers clear image display and accurate color reproduction, making it particularly suitable for applications requiring precise color performance. It has become an ideal choice for industries such as industrial control, medical devices, and portable instruments. This product is also fully compatible with Chenwei Technology's 7-inch touchscreen, providing users with a complete touchscreen display solution.


Basic Specifications of LCD display
Screen Size7-inch diagonal
Outline dimensions (WxHxD) (mm)164.9x100.0x5.7mm
Active Area154.08 (W) x 85.92 (H) mm
Resolution 800 (RGB) x 480
Surface TreatmentAnti-glare
Display Technologya-Si TFT-LCD
Brightness300 cd/m² (typical)
Contrast Ratio800:1 (typical)
Viewing Angle80/80/60/80 (Typ.) (CR≥10)
Color Gamut50% NTSC
Weight160g
Aspect Ratio16:9
Response Time20ms (Typ., Tr+Td)
Interface TypeRGB 6/8-bit single channel (FPC 50-pin)
Input VoltageDVDD: 3.3V | AVDD: 10.4V | VGH: 16.0V | VGL: -7.0V

Operating Temperature

-20°C to +70°C

Storage Temperature

-30°C to +80°C

Touch screen Compatibility
Compatible TouchscreensWIWO 7-inch capacitive/resistive touch screens
Touch InterfaceSupports USB/I2C interface/FPC
Touch FeaturesMulti-touch (capacitive)/Single-touch (resistive)


Suitable Application Areas:


(1) Industrial Control: HMI human-machine interface, PLC control systems

(2) Medical devices: Portable medical diagnostic instruments, monitoring equipment

(3) Smart home: Central control panels, security systems

(4) Retail and food service: POS terminals, self-service ordering kiosks


For more technical details or to request samples, please contact us at 请联系sales03@wiwotouch.com.
