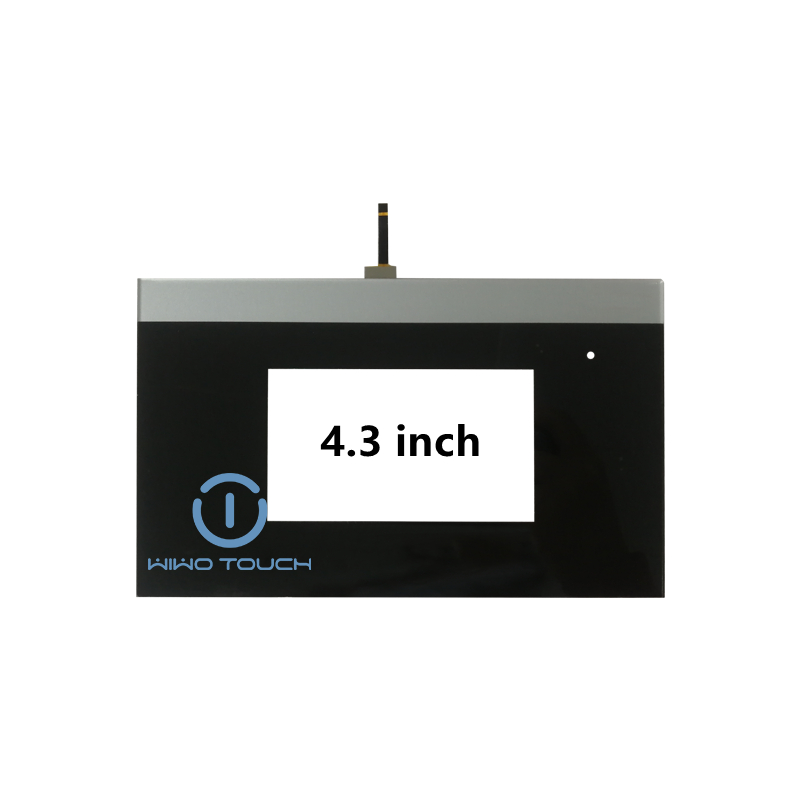

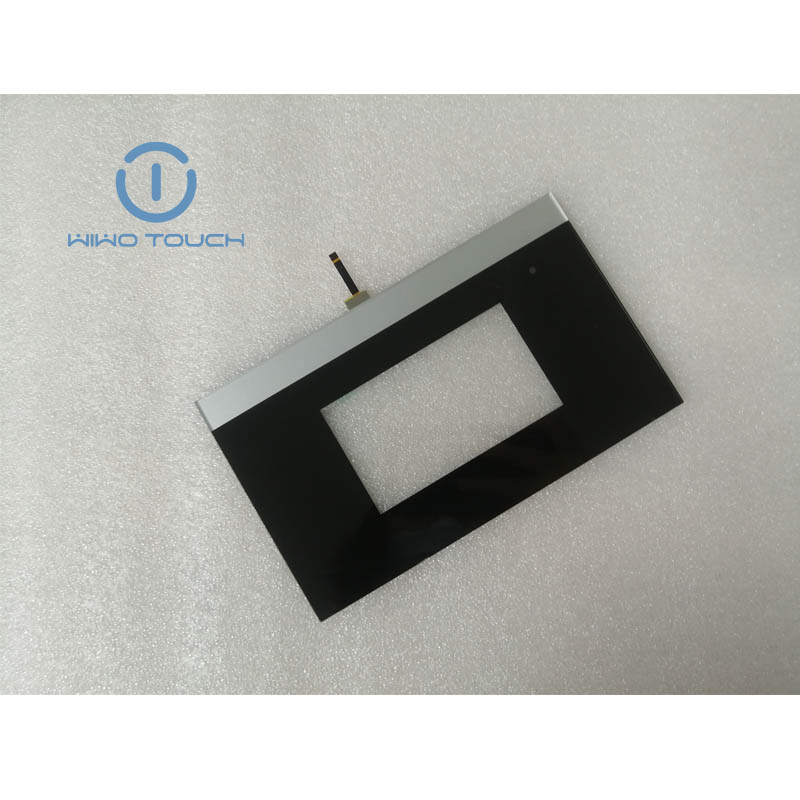

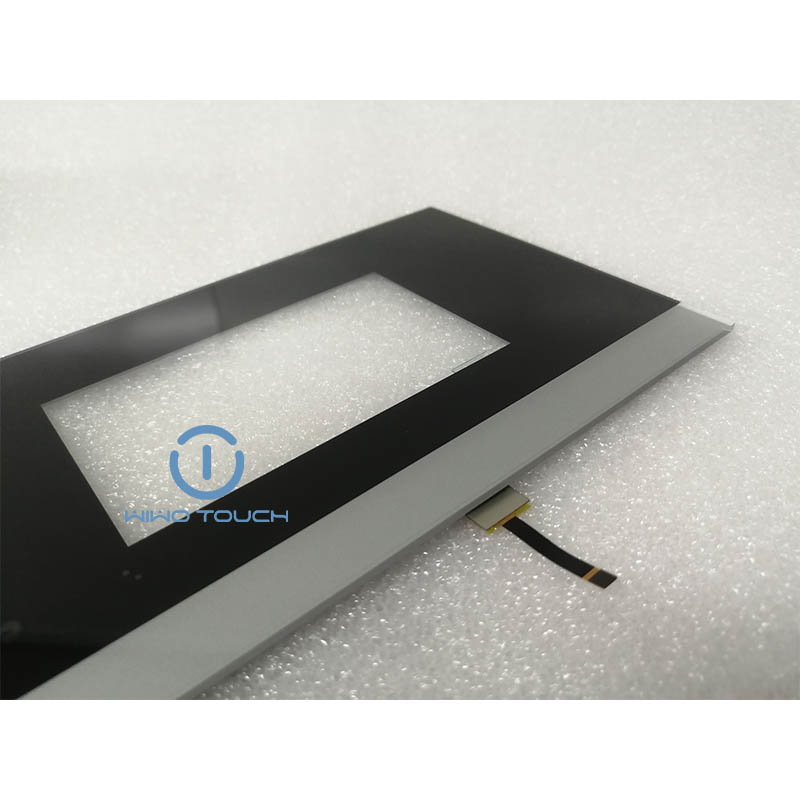

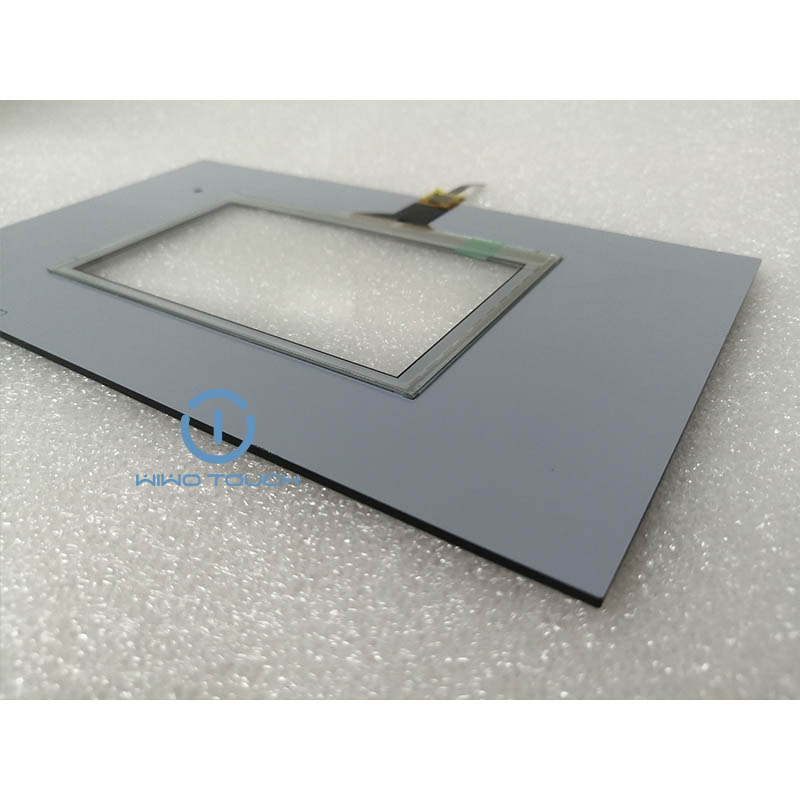

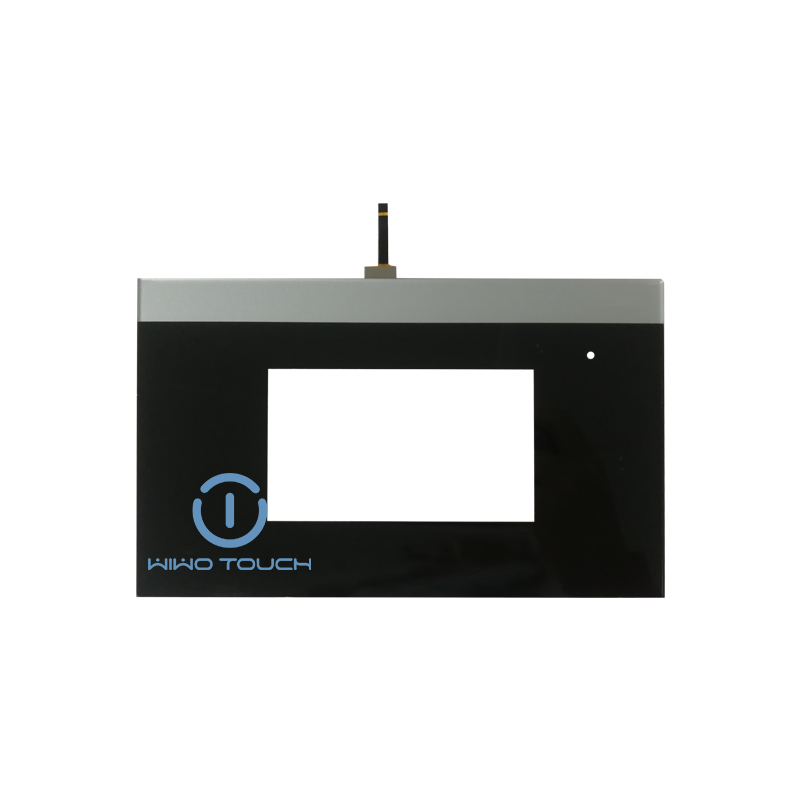

4.3 inch projected capacitive touch screen for temperature control panel

CZJ043PG173 is designed for temperature control panels with the performance high precision and high sensitivity touch control. The projected capacitive touch screen has a very high touch accuracy, can accurately identify the user's touch operation, the user only need to gently touch the signal can be generated, without the need to apply pressure, not only to enhance the user experience but also to improve the control accuracy of temperature control panels. The product adopts a double-layer glass structure, the lower layer is coated with a layer of ITO (Indium Tin Nano Metal Oxide), the upper layer is a glass protective layer, with good wear and scratch resistance, extending the product life. In addition, the product adopts FT5216 as the touch chip, which supports multi-touch technology and allows users to perform multiple operations at the same time, improving operational efficiency.

Other parameters:

- Resolution: depending on the specific product model, but usually supports higher resolution to meet the display requirements of temperature control panels

- Transmittance: ≥85% to ensure a clear display in sunlight or bright light

- Contrast ratio: depends on the specific product model, but usually has a higher contrast ratio to enhance the display effect

- Interface type: IIC, etc., to facilitate the connection with temperature control panels and other devices

- Number of touch points: supports multi-touch to enhance the convenience and flexibility of user operation.

- Operating and storage temperature: support a wide range of temperatures to ensure stable operation in different environments.

- Appearance: black and grey silkscreen, black appearance gives a calm, high-end feeling, grey silk screen has a certain neutral colour characteristics, can be matched with other colours of panels and equipment, to enhance the overall aesthetics.
