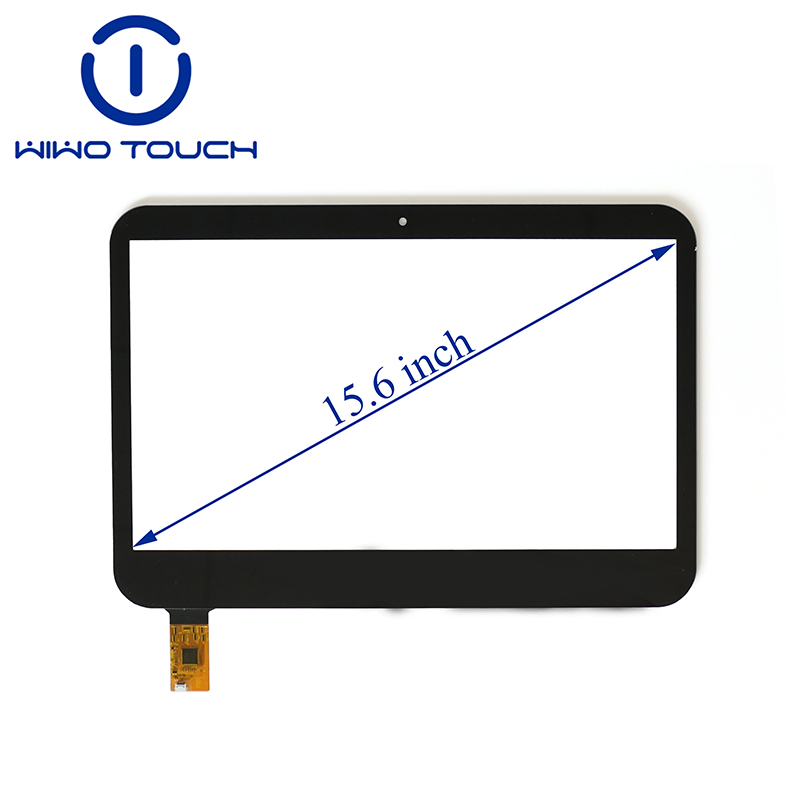

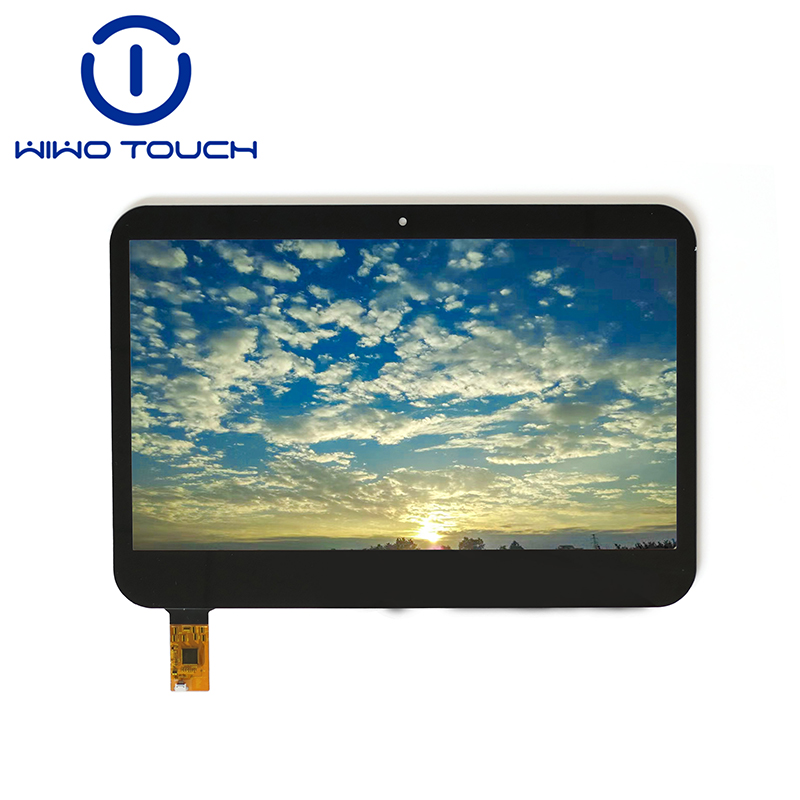

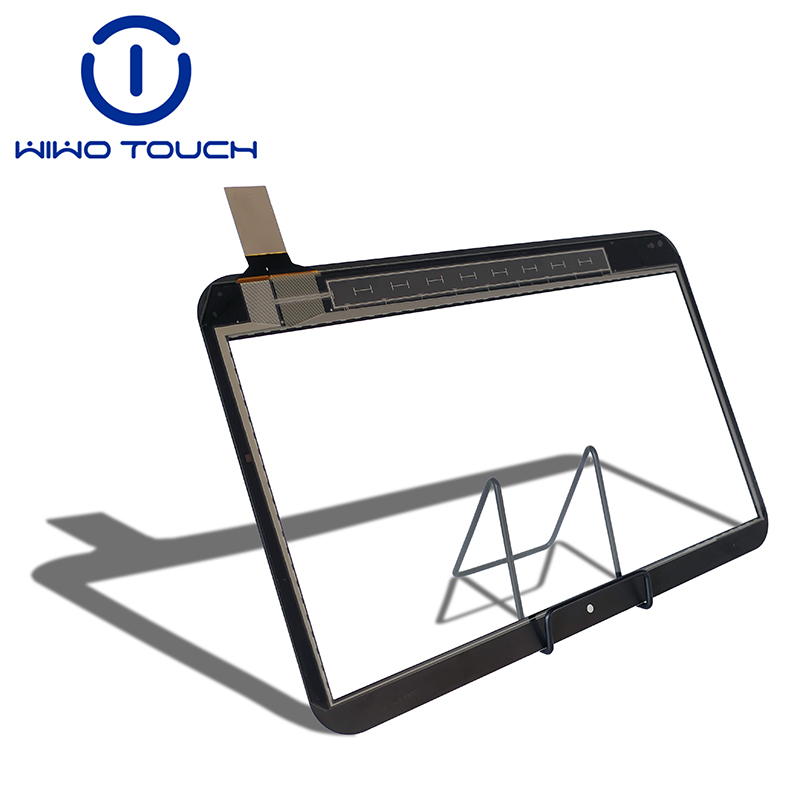

WIWOTOUCH 15.6 inch Anti-bacterial touch screen

  • WIWOTOUCH 15.6 inch Anti-bacterial touch screen
  • WIWOTOUCH 15.6 inch Anti-bacterial touch screen
  • WIWOTOUCH 15.6 inch Anti-bacterial touch screen
WIWOTOUCH 15.6 inch Anti-bacterial touch screenWIWOTOUCH 15.6 inch Anti-bacterial touch screenWIWOTOUCH 15.6 inch Anti-bacterial touch screen
  • Product attributes:
  • Model:304ACLL156GG-V1.0
  • Touch Type: Projected capacitive touch panel
  • Interface: I2C
  • Structure:Cover glass+ITO glass+FPC
  • Product description:
  • 15.6 inch capacitive touch screen with an anti-bacterial coating to inhibit bacteria growth. IC adopts ILI2511, which can work normally without damage when exposed to water, alcohol, cleaning liquid,
  •  Download

15.6 inch Anti-bacterial touch screen


15.6-inch capacitive touch screen with 1.8mm glass cover is covered with an anti-bacterial coating to inhibit bacterial growth. Multi-touch, IC adopts ILI2511, with certain waterproof performance, it can work normally without damage in contact with water, alcohol, cleaning liquid, etc. It can be used for operation control of medical equipment, such as operating table control panel, monitor, infusion pump, ventilator, etc. in the operating theatre. Through the touch screen interface, medical staff can easily set parameters, monitor the status of the equipment and make necessary adjustments.


Material

Chemical Reinforcement

COVER LENS Thickness

1.8 mm

ITO GLASS Thickness

0.55 mm

Total Thickness

3.2±0.2 mm

Resolution

16384*16384

Operating Voltage

2.8V~3.3 V

Interface Voltage

1.8V

FPC

USB/IIC

IC Model

ILI2511

Transmittance

≥85%

Surface Hardness

6H

Operating Environment

-20℃~+70℃,≤90%RH

Storage Environment

-30℃~+80℃,≤90%RH
