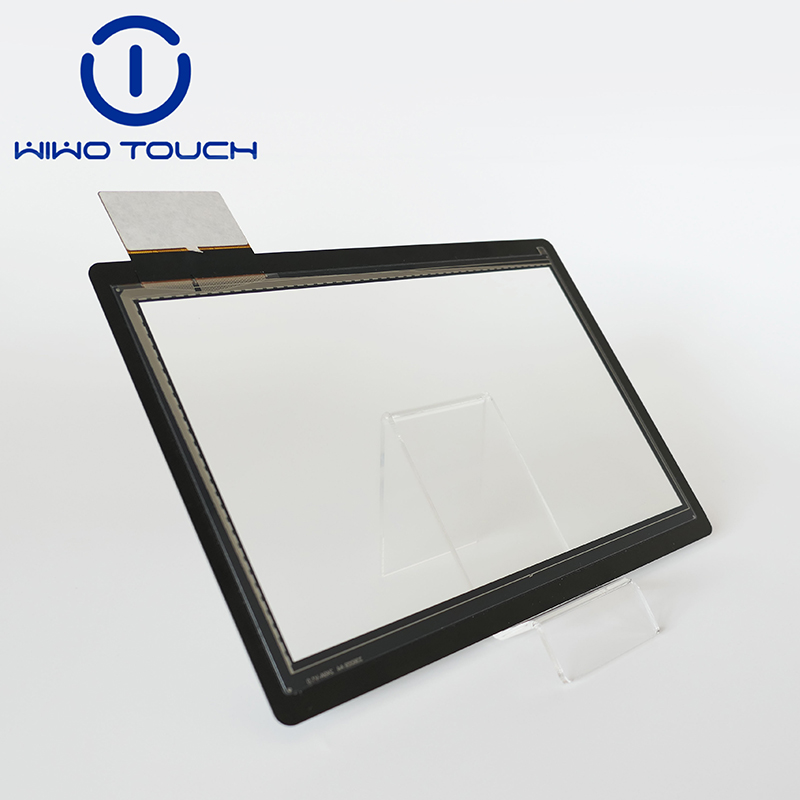

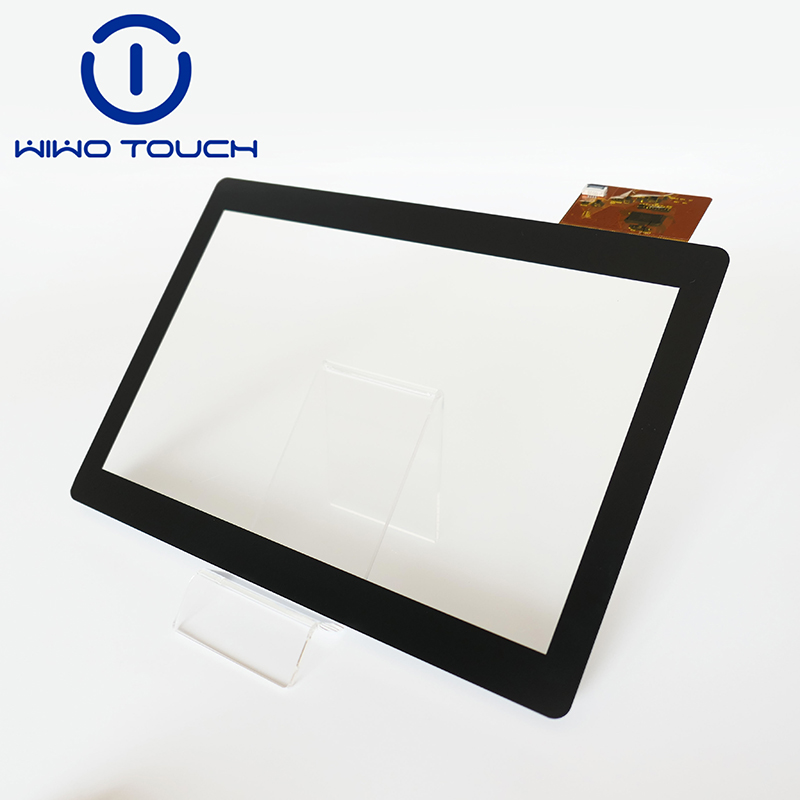

WIWOTOUCH 10.8 inch AGAF capacitive touch screen

  • WIWOTOUCH 10.8 inch AGAF capacitive touch screen
  • WIWOTOUCH 10.8 inch AGAF capacitive touch screen
  • WIWOTOUCH 10.8 inch AGAF capacitive touch screen
WIWOTOUCH 10.8 inch AGAF capacitive touch screenWIWOTOUCH 10.8 inch AGAF capacitive touch screenWIWOTOUCH 10.8 inch AGAF capacitive touch screen
  • Product attributes:
  • Model:249ACFJ108GFF
  • Touch Type: Projected capacitive touch panel
  • Interface: USB
  • Structure:Cover glass+Double film sensor+FPC
  • Product description:
  • 249A is 10.8 inch touch screen, which is suitable for medium-sized devices. The sensor is ultra-thin design, so the device can be thinner and more portable. It also provide a more elegant appearance.
  •  Download

The size of the touch screen is 10.8 inches, which is suitable for medium-sized display devices. The surface is coated with special coating materials AG and AF. AG effectively reduces the reflection and scattering of light and reduces the effect of glare on the screen display. This allows users to see the screen content more clearly and reduces visual fatigue when using the device in bright environments.AF reduces the traces left by fingerprints and grease. This means users can operate on the touchscreen without worrying about fingerprints contaminating the screen, keeping it clean. The sensor is designed with a double-layer film. This ultra-thin design allows the device to be thinner and more portable, while also providing a more elegant appearance to meet the special needs of some customers.


Material

Sodalime

Surface treatment

AG+AF

Cover Glass Dimension244.75±0.2*173.1±0.2 mm
Cover Lens VA217.81±0.2*136.5±0.2 mm

COVER LENS Thickness

0.7±0.05 mm

ITO GLASS Thickness

0.475 mm

Total Thickness

1.18±0.2 mm

IC model

GT7387p+S819E

Operating Voltage

2.8 V-3.3 V

Interface Voltage

2.8 V-3.3 V

Resolution

1024*600

Transmittance

≥83%

Surface Hardness

6H

Operating Environment

-20℃~+70℃,≤45~90%RH

Storage Environment

-30℃~+80℃,≤45~90%RH

Certificate

RoHS
