SITO projected capacitive touch panel is basically a capacitive touch panel concept, increasing the existence of two sets of different planes and perpendicular to each other, transparent wires (X, Y) and drive lines constitute, because the X, Y structure on different surfaces, the intersection of the formation of a capacitance node, when the current through the drive line through one of the wire, the other layer of the lead line and the detection of changes in the capacitance value of the electronic circuit is connected. During operation, the controller supplies current to the different layers of the drive wires, thus creating a specific electric field between the nodes and the wires. When a finger or a touch medium approaches, the controller quickly detects the change in capacitance between the nodes and the wires, and thus confirms the position of the touch. Since the transparent leads form a three-dimensional electric field on the panel that is different from the surface capacitance, the touch can occur without actual contact; in other words, projected capacitance has Z-axis resolution for touch applications.
SITO touch panel product features:
High reliability: ITO single-side design, wires and conductive areas are not exposed, completely wrapped and protected between the cover glass.
It can achieve the real extreme narrow edge design and better stability.
Optical effect: AG matte, AR anti-reflective, AF anti-pollution or AB anti-bacterial treatment can be added according to different needs.
Multi-touch control with gesture and software design for convenient operation.
High sensitivity, the slightest difference in the electrical charge on the finger can be used to read the signals, and the response is very sensitive.
High light transmission, more than 90% light transmission rate.
High abrasion resistance, the surface of the glass cover can reach 6H hardness or above.
Application field of SITO touch screen:
Intelligent car field: in intelligent cars, SITO touch screen can be used for the operation interface of in-vehicle infotainment system, dashboard display and so on. Through the touch screen, drivers can conveniently view vehicle information, navigation maps, entertainment programmes, etc., improving driving safety and comfort.
Public information query field: SITO touch screen also plays an important role in the information query terminals in public service departments such as telecommunication bureaus, tax bureaus, banks, electric power and other public service departments as well as city streets. Users can query a variety of business information through the touch screen, access to real-time information.
Industrial control field: In the industrial control field, SITO touch screen can be used in the operation interface and monitoring system of industrial equipment. Through the touch screen, operators can intuitively monitor the operating status of the equipment, adjust equipment parameters, etc., to improve the efficiency and safety of industrial production.

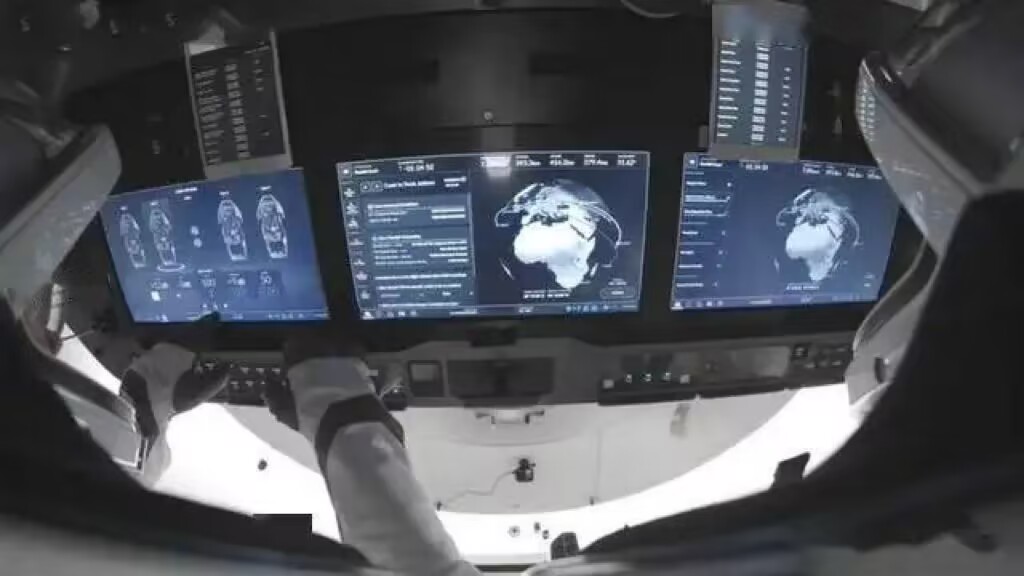

Aviation control panels: The application of SITO touch panels in the aviation field not only improves the operation efficiency and safety of pilots, but also optimises the process of aviation testing and equipment control, as well as improving the efficiency of aircraft maintenance and troubleshooting. With the continuous progress and innovation of technology, the application of touch screen in the field of aviation will have a broader future.
